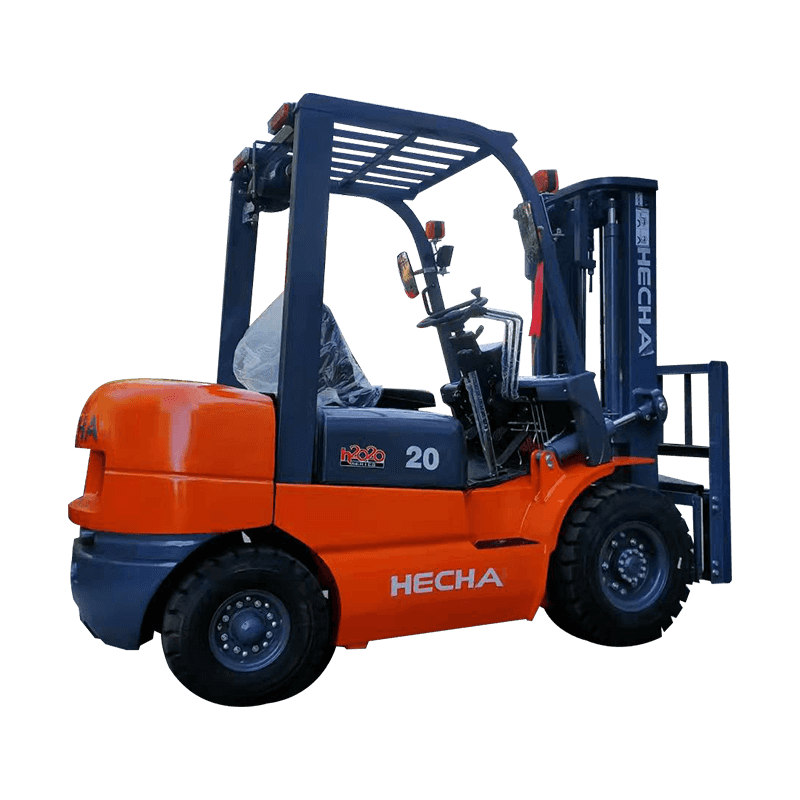

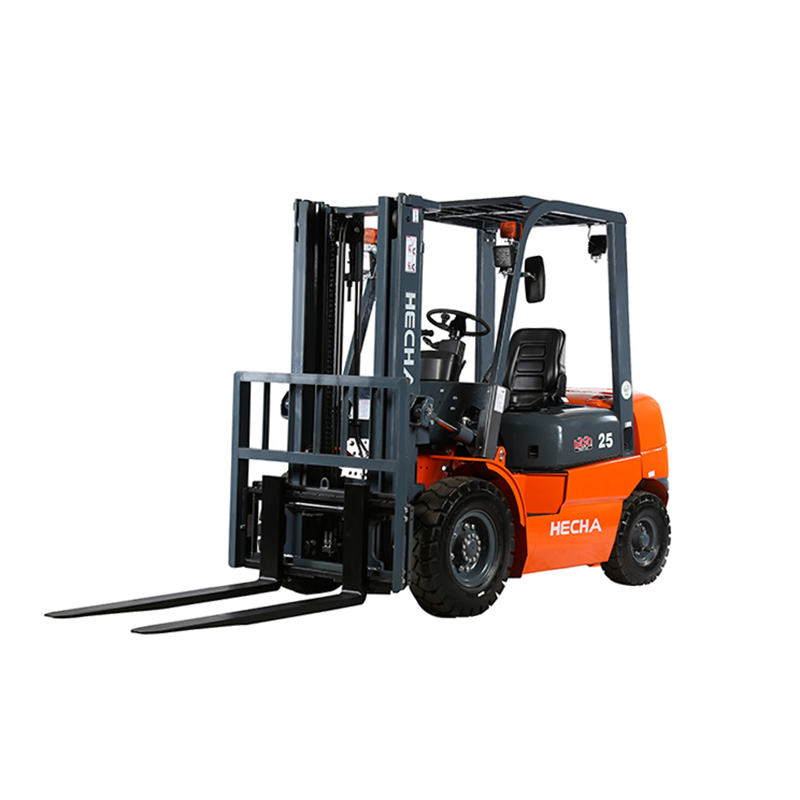

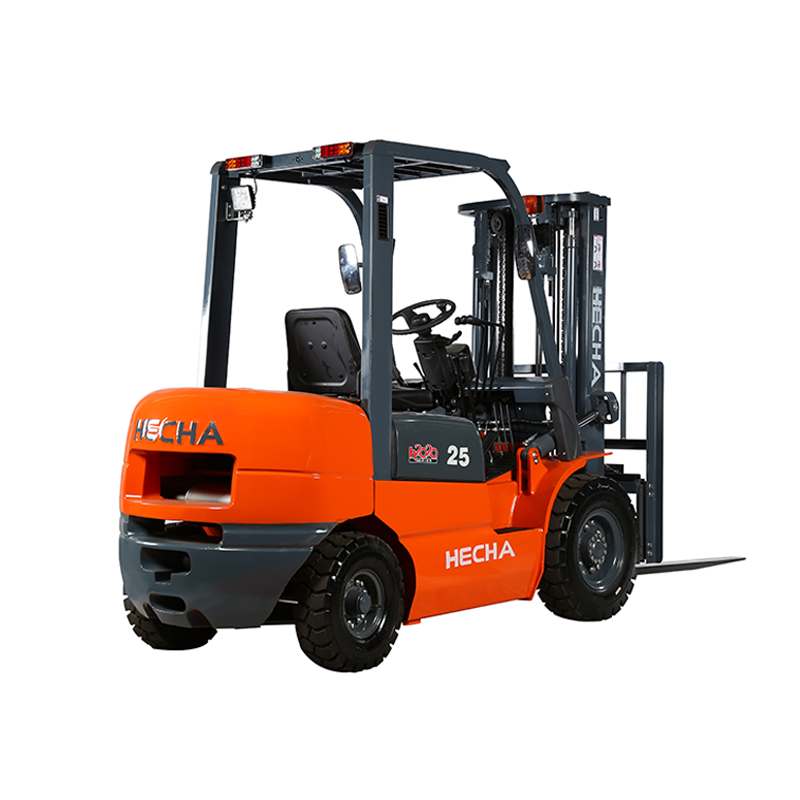

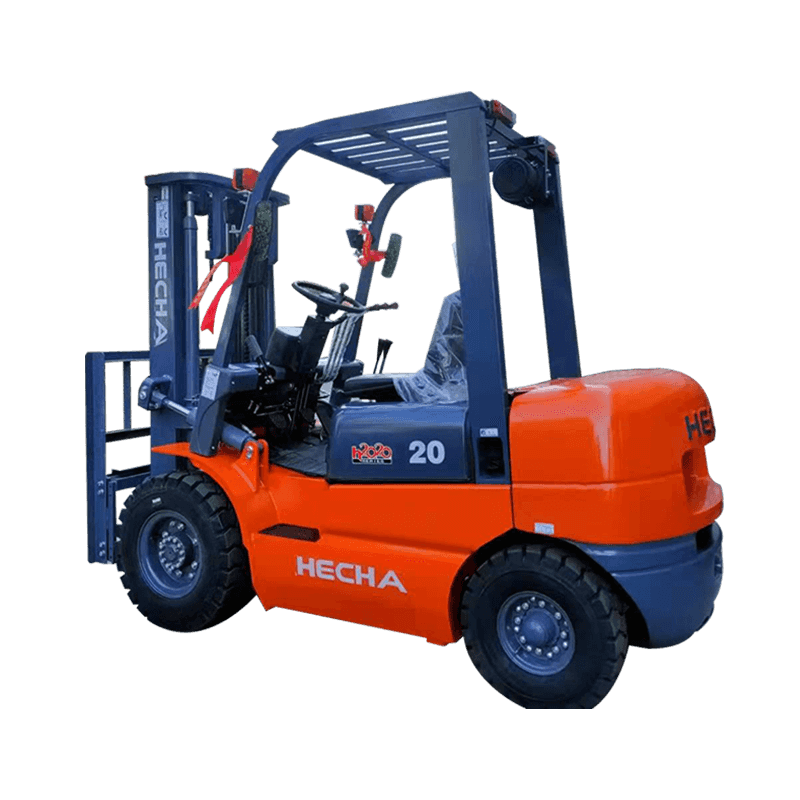

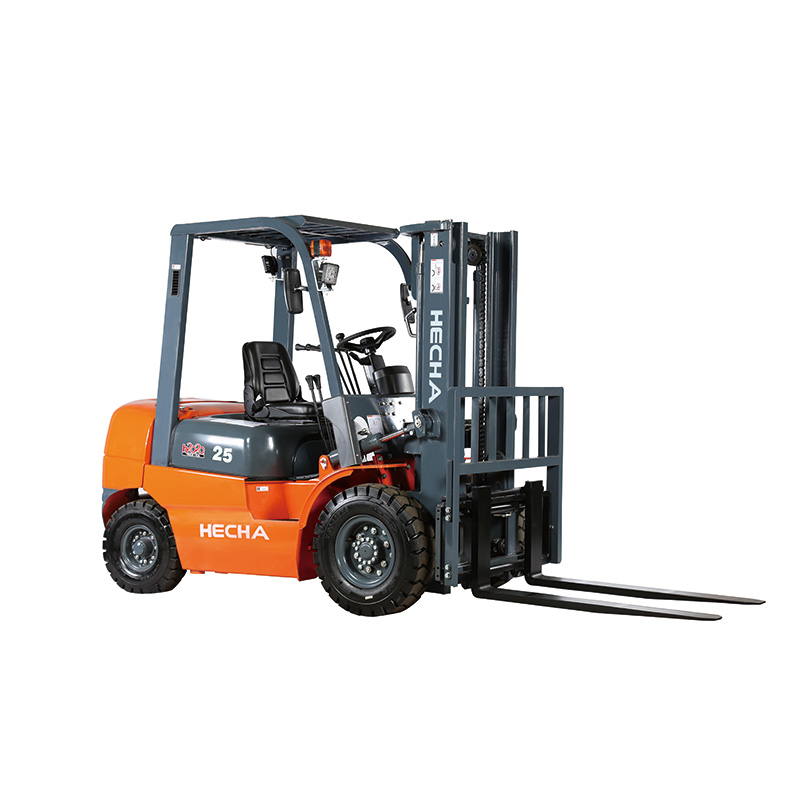

H series diesel forklift is Hecha core production. The capacity range of a 2.0-3.8ton Diesel Forkliftis a popular model in the market.
H series diesel forklift is Hecha core production. The capacity range of a 2.0-3.8ton Diesel Forkliftis a popular model in the market.
Characteristics | |||||||
1.1 | Model Name | Metric | FD10 | FD15 | FD18 | FD20 | FD25 |
1.2 | Power Source | Diesel | Diesel | Diesel | Diesel | Diesel | |
1.3 | Rated Capacity | kg | 1000 | 1500 | 1800 | 2000 | 2500 |
1.4 | Load Center | mm | 500 | 500 | 500 | 500 | 500 |
Dimensions | |||||||
2.1 | Mast Extended Height(with Brackrest) | mm | 4065 | 4065 | 4065 | 4060 | 4060 |
2.2 | Lifting Height | mm | 3000 | 3000 | 3000 | 3000 | 3000 |
2.3 | Mast Height, Lowered | mm | 1995 | 1995 | 1995 | 2060 | 2060 |
2.4 | Free Lift Height | mm | 100 | 100 | 100 | 140 | 140 |
2.5 | Backrest Height(Calculated from the Fork Surface) |
mm | 1015 | 1015 | 1015 | 1010 | 1010 |
2.6 | Distance from the Surface of the Seat to the Overhead Guard |
mm | 1030 | 1030 | 1030 | 1035 | 1035 |
2.7 | Overhead Guard Height | mm | 2070 | 2070 | 2070 | 2090 | 2090 |
2.8 | Overall Length(without Forks) | mm | 2170 | 2260 | 2260 | 2475 | 2550 |
2.9 | Overall Length(with Forks) | mm | 2940 | 3180 | 3180 | 3545 | 3620 |
2.10 | Fork Overhang | mm | 420 | 420 | 420 | 435 | 435 |
2.11 | Wheel Base | mm | 1400 | 1400 | 1400 | 1600 | 1600 |
2.12 | Real Overhang | mm | 350 | 440 | 440 | 440 | 515 |
2.13 | Min. Ground clearance(from the Bottom of | mm | 110 | 110 | 110 | 128 | 128 |
2.14 | Overall Width | mm | 1070 | 1070 | 1070 | 1150 | 1150 |
2.15 | Lateral Fork Adjustment(Outside of Fork) (max./min.) |
mm | 968/200 | 968/200 | 968/200 | 1024/240 | 1024/240 |
2.16 | Front Tread | mm | 890 | 890 | 920 | 970 | 970 |
2.17 | Rear Tread | mm | 920 | 920 | 920 | 970 | 970 |
2.18 | Min.Turning Radius(Outside) | mm | 1880 | 1955 | 1985 | 2170 | 2240 |
2.19 | Tilt of Mast Forward(deg)/ Backward(deg)α/β |
0 | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 |
2.20 | Fork size | mm | 770*100*32 | 920*100*35 | 920*100*35 | 1070*120*40 | 1070*120*40 |
Spec | ification | ||||||
3.1 | Travel Speed(laden/unladen) | km/h | 11.5/14.5 | 11.5/14.5 | 11.5/14.5 | 17/19.5 | 17/19.5 |
3.2 | Lifting Speed (laden/unladen) | mm/s | 590/650 | 590/650 | 590/650 | 570/600 | 570/600 |
3.3 | Self Weight | kg | 2150 | 2590 | 2820 | 3320 | 3680 |
Tyre | |||||||
4.1 | Number of Drive Wheels | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 | |
4.2 | Tyres Type | Pneumatic/Solid | Pneumatic/Solid | Pneumatic/Solid | Pneumatic/Solid | Pneumatic/Solid | |
4.3 | Dimensions of Front Wheels | 6.50-10- 10PR |
6.50-10- 10PR |
6.50-10- 10PR |
7.00-12- 12PR |
7.00-12- 12PR |
|
4.4 | Dimensions of Rear Wheels | 5.00-8-8PR | 5.00-8-8PR | 5.00-8-8PR | 6.00-9-10PR | 6.00-9-10PR | |
Brake, Transmission Devices, and Engine | |||||||
5.1 | Battery Voltage/Capacity | V/Ah | 12/80 | 12/80 | 12/80 | 12/90 | 12/90 |
5.2 | Engine Model | Japanese or Chinese engine optional |
Japanese or Chinese engine optional |
Japanese or Chinese engine optional |
Japanese or Chinese engine optiong |
Japanese or Chinese engine optional |
|
5.3 | Rated Output/r.p.m | kW/rpm | 32/2500 | 32/2500 | 32/2500 | 36.8/2500 | 36.8/2500 |
5.4 | Rated Torque/r.p.m | N.m/rpm | 132/1800 | 132/1800 | 132/1800 | 156/1700- 1900 |
156/1700- 1900 |
5.5 | No.of Cylinder | 4-80*100 | 4-80*100 | 4-80*100 | 4-90*105 | 4-90*105 | |
5.6 | Displacement | L | 2.27 | 2.27 | 2.27 | 2.67 | 2.67 |
5.7 | Emission Standard | Ching stage Ill or Optional |
Ching stage Ill or Optional |
Ching stage Ill or Optional |
Ching stage lll or Optional |
China stage Ill or Optional |
|
5.8 | Fuel Tank Capacity | L | 38 | 38 | 38 | 60 | 60 |
5.9 | Transmissions Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
Characteristics | |||||||
1.1 | Model Name | Metric | FD30 | FD35 | FD40 | FD45 | FD50 |
1.2 | Power Source | Diesel | Diesel | Diesel | Diesel | Diesel | |
1.3 | Rated Capacity | kg | 3000 | 3500 | 4000 | 4500 | 5000 |
1.4 | Load Center | mm | 500 | 500 | 500 | 500 | 500 |
Dimensions | |||||||
2.1 | Mast Extended Height(with Brackrest) | mm | 4275 | 4270 | 4250 | 4250 | 4250 |
2.2 | Lifting Height | mm | 3000 | 3000 | 3000 | 3000 | 3000 |
2.3 | Mast Height, Lowered | mm | 2080 | 2125 | 2350 | 2350 | 2350 |
2.4 | Free Lift Height | mm | 145 | 150 | 150 | 150 | 150 |
2.5 | Backrest Height(Calculated from the Fork Surface) |
mm | 1225 | 1220 | 1250 | 1250 | 1250 |
2.6 | Distance from the Surface of the Seat to the Overhead Guard |
mm | 1035 | 1035 | 1020 | 1020 | 1020 |
2.7 | Overhead Guard Height | mm | 2106 | 2106 | 2350 | 2350 | 2350 |
2.8 | Overall Length(without Forks) | mm | 2690 | 2725 | 3195 | 3195 | 3195 |
2.9 | Overall Length(with Forks) | mm | 3760 | 3795 | 4265 | 4265 | 4265 |
2.10 | Fork Overhang | mm | 465 | 465 | 555 | 555 | 555 |
2.11 | Wheel Base | mm | 1700 | 1700 | 2100 | 2100 | 2100 |
2.12 | Real Overhang | mm | 525 | 560 | 540 | 540 | 584 |
2.13 | Min. Ground clearance(from the Bottom of | mm | 145 | 145 | 175 | 175 | 175 |
2.14 | Overall Width | mm | 1225 | 1225 | 1420 | 1420 | 1420 |
2.15 | Lateral Fork Adjustment(Outside of Fork) (max./min.) |
mm | 1091/250 | 1091/250 | 1340/300 | 1340/300 | 1340/300 |
2.16 | Front Tread | mm | 1000 | 1000 | 1180 | 1180 | 1180 |
2.17 | Rear Tread | mm | 970 | 970 | 1190 | 1190 | 1190 |
2.18 | Min.Turning Radius(Outside) | mm | 2420 | 2470 | 2600 | 2900 | 2900 |
2.19 | Tilt of Mast Forward (deg)/Backward(deg) α/β |
0 | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 |
2.20 | Fork size | mm | 1070*125*45 | 1070*125* 50 |
1070*150* 50 |
1070*150* 50 |
1070*150* 50 |
Specification | |||||||
3.1 | Travel Speed(laden/unladen) | km/h | 18/19.5 | 18/19.5 | 22/22.5 | 22/22.5 | 22/22.5 |
3.2 | Lifting Speed(laden/unladen) | mm/s | 450/500 | 380/450 | 370/400 | 370/400 | 460/500 |
3.3 | Self Weight | kg | 4370 | 4750 | 5950 | 6200 | 6400 |
Tyre | |||||||
4.1 | Number of Drive Wheels | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 | |
4.2 | Tyres Type | Pneumatic/Solid | Pneumatic/Solid | Pneumatic/Solid | Pneumatic/Solid | Pneumatic/Solid | |
4.3 | Dimensions of Front Wheels | 28*9-15- 12PR |
28*9-15- 12PR |
300-15- 14PR |
300-15- 14PR |
300-15- 14PR |
|
4.4 | Dimensions of Rear Wheels | 6.50-10- 10PR |
6.50-10- 10PR |
7.00-12- 12PR |
7.00-12- 12PR |
7.00-12- 12PR |
|
Brake, Transmission Devices, and Engine | |||||||
5.1 | Battery Voltage/Capacity | V/Ah | 12/80 | 12/80 | 24/90 | 12/90 | 12/90 |
5.2 | Engine Model | Japanese or Chinese engine optional |
Japanese or Chinese engine optional |
Japanese or Chinese engine optional |
Japanese or Chinese engine optional |
Japanese or Chinese engine optional |
|
5.3 | Rated Output/r.p.m | kW/rpm | 36.8/2500 | 36.8/2500 | 48/2300 60/2200 |
48/2300 60/2200 |
48/2300 60/2200 |
5.4 | Rated Torque/r.p.m | N.m/rpm | 156/1700- 1900 |
156/1700- 1900 |
230/1600- 1800 |
230/1600- 1800 |
230/1600- 1800 |
5.5 | No.of Cylinder | 4-90*105 | 4-90*105 | 4 | 4 | 4 | |
5.6 | Displacement | L | 2.67 | 2.67 | 3.47 | 3.47 | 3.47 |
5.7 | Emission Standard | Ching stage Ill or Optional |
China stage Ill or Optional |
Ching stage IIl or Optional |
Ching stage Ill or Optional |
China stage IIl or Optional |
|
5.8 | Fuel Tank Capacity | L | 60 | 60 | 90 | 60 | 60 |
5.9 | Transmissions Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Note: The vertical axis stands for load capacity while the horizontal axis stands for load center. The load capacity of the standard mast at different load centers can be known from this load chart.
Standard Configuration
Fork IWater Thermometer | Load Backrest | Overhead Guard | Electric Horn | Traction Pin | Fuel Gauge | Two-piece Multi-way Valve | Transmission Oil Filter Cartridge | Reversing Buzzer | Transmission Oil Dipstick | Neutra | Safty Switch | Overhead Guard Rain-cover | Air Intake Device | Durable Patterned | Tool Box | Wide-view Mast| Standard Seat | Headlamp | Rear Combined Lamp | Shaped Pedal Pad | Hydraulic Oil Dipstick | Lifting and Tilt Lever | Tilt Adjustable Steering Column
Optional Configuration
Driver's Cabin | Warning Light | Upper Exhaust | HeaterIFull Free 2-Stage Mast | Full Free 3-Stage Mast Special Size Fork | Side Shifter | Paper Roller Clamp | Brick Clamp | Rotator | Push-puller | Fork Positioner | Other Japanese Engines | Cooling Air Conditioner | Suspension Seat | Solid Tyre | Fire Extinguisher | Rear Working Light | Cylinder Sleeve | Full LED Lights | OPS(Travelling Function and Loading Function)
