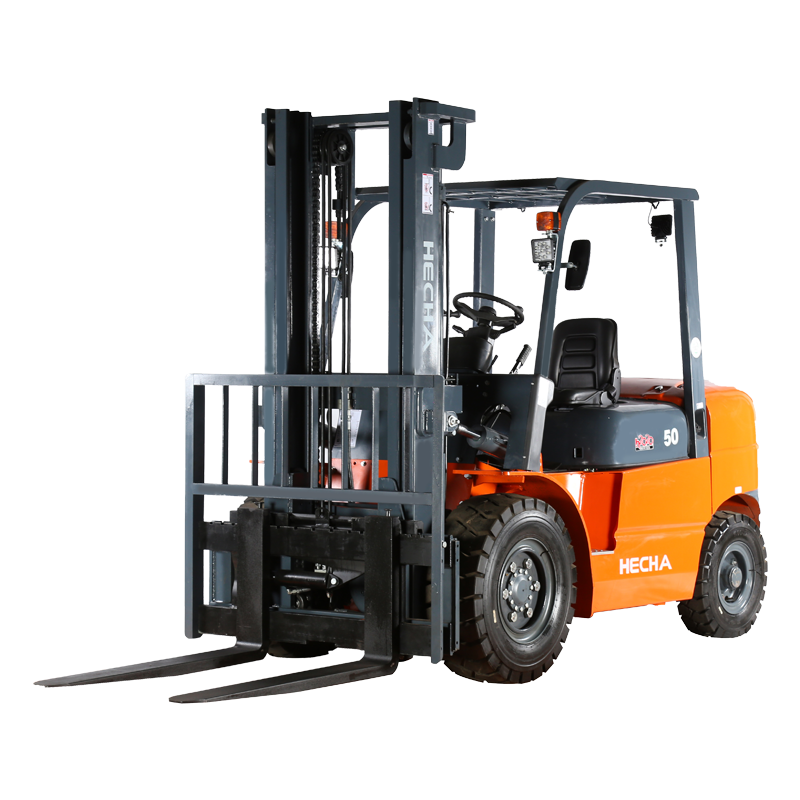

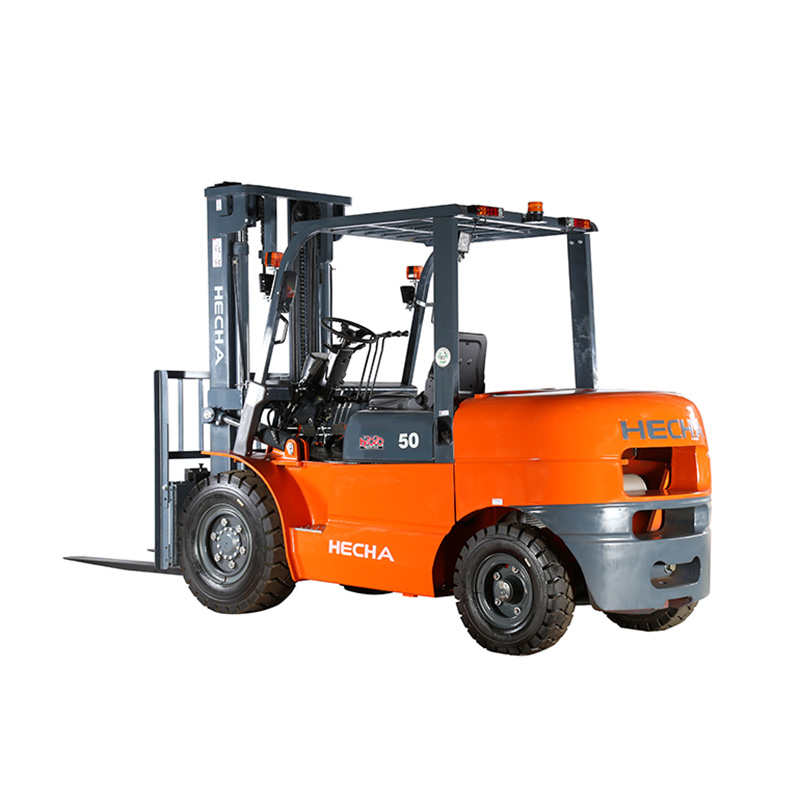

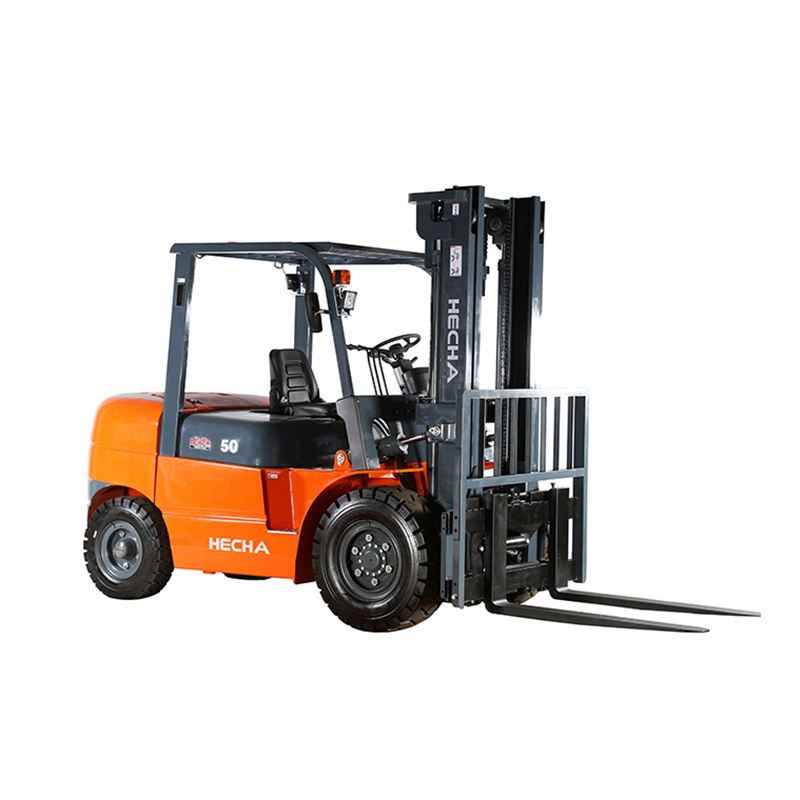

Capacity range 4.0 - 5.0 Ton Diesel Forklift is high-performance with price obvious advantage.
Capacity range 4.0 - 5.0 Ton Diesel Forklift is high-performance with price obvious advantage.
Characteristics | |||||||
1.1 | Model Name | Metric | FD10 | FD15 | FD18 | FD20 | FD25 |
1.2 | Power Source | Diesel | Diesel | Diesel | Diesel | Diesel | |
1.3 | Rated Capacity | kg | 1000 | 1500 | 1800 | 2000 | 2500 |
1.4 | Load Center | mm | 500 | 500 | 500 | 500 | 500 |
Dimensions | |||||||
2.1 | Mast Extended Height(with Brackrest) | mm | 4065 | 4065 | 4065 | 4060 | 4060 |
2.2 | Lifting Height | mm | 3000 | 3000 | 3000 | 3000 | 3000 |
2.3 | Mast Height, Lowered | mm | 1995 | 1995 | 1995 | 2060 | 2060 |
2.4 | Free Lift Height | mm | 100 | 100 | 100 | 140 | 140 |
2.5 | Backrest Height(Calculated from the Fork Surface) |
mm | 1015 | 1015 | 1015 | 1010 | 1010 |
2.6 | Distance from the Surface of the Seat to the Overhead Guard |
mm | 1030 | 1030 | 1030 | 1035 | 1035 |
2.7 | Overhead Guard Height | mm | 2070 | 2070 | 2070 | 2090 | 2090 |
2.8 | Overall Length(without Forks) | mm | 2170 | 2260 | 2260 | 2475 | 2550 |
2.9 | Overall Length(with Forks) | mm | 2940 | 3180 | 3180 | 3545 | 3620 |
2.10 | Fork Overhang | mm | 420 | 420 | 420 | 435 | 435 |
2.11 | Wheel Base | mm | 1400 | 1400 | 1400 | 1600 | 1600 |
2.12 | Real Overhang | mm | 350 | 440 | 440 | 440 | 515 |
2.13 | Min. Ground clearance(from the Bottom of | mm | 110 | 110 | 110 | 128 | 128 |
2.14 | Overall Width | mm | 1070 | 1070 | 1070 | 1150 | 1150 |
2.15 | Lateral Fork Adjustment(Outside of Fork) (max./min.) |
mm | 968/200 | 968/200 | 968/200 | 1024/240 | 1024/240 |
2.16 | Front Tread | mm | 890 | 890 | 920 | 970 | 970 |
2.17 | Rear Tread | mm | 920 | 920 | 920 | 970 | 970 |
2.18 | Min.Turning Radius(Outside) | mm | 1880 | 1955 | 1985 | 2170 | 2240 |
2.19 | Tilt of Mast Forward(deg)/ Backward(deg)α/β |
0 | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 |
2.20 | Fork size | mm | 770*100*32 | 920*100*35 | 920*100*35 | 1070*120*40 | 1070*120*40 |
Spec | ification | ||||||
3.1 | Travel Speed(laden/unladen) | km/h | 11.5/14.5 | 11.5/14.5 | 11.5/14.5 | 17/19.5 | 17/19.5 |
3.2 | Lifting Speed (laden/unladen) | mm/s | 590/650 | 590/650 | 590/650 | 570/600 | 570/600 |
3.3 | Self Weight | kg | 2150 | 2590 | 2820 | 3320 | 3680 |
Tyre | |||||||
4.1 | Number of Drive Wheels | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 | |
4.2 | Tyres Type | Pneumatic/Solid | Pneumatic/Solid | Pneumatic/Solid | Pneumatic/Solid | Pneumatic/Solid | |
4.3 | Dimensions of Front Wheels | 6.50-10- 10PR |
6.50-10- 10PR |
6.50-10- 10PR |
7.00-12- 12PR |
7.00-12- 12PR |
|
4.4 | Dimensions of Rear Wheels | 5.00-8-8PR | 5.00-8-8PR | 5.00-8-8PR | 6.00-9-10PR | 6.00-9-10PR | |
Brake, Transmission Devices, and Engine | |||||||
5.1 | Battery Voltage/Capacity | V/Ah | 12/80 | 12/80 | 12/80 | 12/90 | 12/90 |
5.2 | Engine Model | Japanese or Chinese engine optional |
Japanese or Chinese engine optional |
Japanese or Chinese engine optional |
Japanese or Chinese engine optiong |
Japanese or Chinese engine optional |
|
5.3 | Rated Output/r.p.m | kW/rpm | 32/2500 | 32/2500 | 32/2500 | 36.8/2500 | 36.8/2500 |
5.4 | Rated Torque/r.p.m | N.m/rpm | 132/1800 | 132/1800 | 132/1800 | 156/1700- 1900 |
156/1700- 1900 |
5.5 | No.of Cylinder | 4-80*100 | 4-80*100 | 4-80*100 | 4-90*105 | 4-90*105 | |
5.6 | Displacement | L | 2.27 | 2.27 | 2.27 | 2.67 | 2.67 |
5.7 | Emission Standard | Ching stage Ill or Optional |
Ching stage Ill or Optional |
Ching stage Ill or Optional |
Ching stage lll or Optional |
China stage Ill or Optional |
|
5.8 | Fuel Tank Capacity | L | 38 | 38 | 38 | 60 | 60 |
5.9 | Transmissions Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
Characteristics | |||||||
1.1 | Model Name | Metric | FD30 | FD35 | FD40 | FD45 | FD50 |
1.2 | Power Source | Diesel | Diesel | Diesel | Diesel | Diesel | |
1.3 | Rated Capacity | kg | 3000 | 3500 | 4000 | 4500 | 5000 |
1.4 | Load Center | mm | 500 | 500 | 500 | 500 | 500 |
Dimensions | |||||||
2.1 | Mast Extended Height(with Brackrest) | mm | 4275 | 4270 | 4250 | 4250 | 4250 |
2.2 | Lifting Height | mm | 3000 | 3000 | 3000 | 3000 | 3000 |
2.3 | Mast Height, Lowered | mm | 2080 | 2125 | 2350 | 2350 | 2350 |
2.4 | Free Lift Height | mm | 145 | 150 | 150 | 150 | 150 |
2.5 | Backrest Height(Calculated from the Fork Surface) |
mm | 1225 | 1220 | 1250 | 1250 | 1250 |
2.6 | Distance from the Surface of the Seat to the Overhead Guard |
mm | 1035 | 1035 | 1020 | 1020 | 1020 |
2.7 | Overhead Guard Height | mm | 2106 | 2106 | 2350 | 2350 | 2350 |
2.8 | Overall Length(without Forks) | mm | 2690 | 2725 | 3195 | 3195 | 3195 |
2.9 | Overall Length(with Forks) | mm | 3760 | 3795 | 4265 | 4265 | 4265 |
2.10 | Fork Overhang | mm | 465 | 465 | 555 | 555 | 555 |
2.11 | Wheel Base | mm | 1700 | 1700 | 2100 | 2100 | 2100 |
2.12 | Real Overhang | mm | 525 | 560 | 540 | 540 | 584 |
2.13 | Min. Ground clearance(from the Bottom of | mm | 145 | 145 | 175 | 175 | 175 |
2.14 | Overall Width | mm | 1225 | 1225 | 1420 | 1420 | 1420 |
2.15 | Lateral Fork Adjustment(Outside of Fork) (max./min.) |
mm | 1091/250 | 1091/250 | 1340/300 | 1340/300 | 1340/300 |
2.16 | Front Tread | mm | 1000 | 1000 | 1180 | 1180 | 1180 |
2.17 | Rear Tread | mm | 970 | 970 | 1190 | 1190 | 1190 |
2.18 | Min.Turning Radius(Outside) | mm | 2420 | 2470 | 2600 | 2900 | 2900 |
2.19 | Tilt of Mast Forward (deg)/Backward(deg) α/β |
0 | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 |
2.20 | Fork size | mm | 1070*125*45 | 1070*125* 50 |
1070*150* 50 |
1070*150* 50 |
1070*150* 50 |
Specification | |||||||
3.1 | Travel Speed(laden/unladen) | km/h | 18/19.5 | 18/19.5 | 22/22.5 | 22/22.5 | 22/22.5 |
3.2 | Lifting Speed(laden/unladen) | mm/s | 450/500 | 380/450 | 370/400 | 370/400 | 460/500 |
3.3 | Self Weight | kg | 4370 | 4750 | 5950 | 6200 | 6400 |
Tyre | |||||||
4.1 | Number of Drive Wheels | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 | |
4.2 | Tyres Type | Pneumatic/Solid | Pneumatic/Solid | Pneumatic/Solid | Pneumatic/Solid | Pneumatic/Solid | |
4.3 | Dimensions of Front Wheels | 28*9-15- 12PR |
28*9-15- 12PR |
300-15- 14PR |
300-15- 14PR |
300-15- 14PR |
|
4.4 | Dimensions of Rear Wheels | 6.50-10- 10PR |
6.50-10- 10PR |
7.00-12- 12PR |
7.00-12- 12PR |
7.00-12- 12PR |
|
Brake, Transmission Devices, and Engine | |||||||
5.1 | Battery Voltage/Capacity | V/Ah | 12/80 | 12/80 | 24/90 | 12/90 | 12/90 |
5.2 | Engine Model | Japanese or Chinese engine optional |
Japanese or Chinese engine optional |
Japanese or Chinese engine optional |
Japanese or Chinese engine optional |
Japanese or Chinese engine optional |
|
5.3 | Rated Output/r.p.m | kW/rpm | 36.8/2500 | 36.8/2500 | 48/2300 60/2200 |
48/2300 60/2200 |
48/2300 60/2200 |
5.4 | Rated Torque/r.p.m | N.m/rpm | 156/1700- 1900 |
156/1700- 1900 |
230/1600- 1800 |
230/1600- 1800 |
230/1600- 1800 |
5.5 | No.of Cylinder | 4-90*105 | 4-90*105 | 4 | 4 | 4 | |
5.6 | Displacement | L | 2.67 | 2.67 | 3.47 | 3.47 | 3.47 |
5.7 | Emission Standard | Ching stage Ill or Optional |
China stage Ill or Optional |
Ching stage IIl or Optional |
Ching stage Ill or Optional |
China stage IIl or Optional |
|
5.8 | Fuel Tank Capacity | L | 60 | 60 | 90 | 60 | 60 |
5.9 | Transmissions Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Note: The vertical axis stands for load capacity while the horizontal axis stands for load center. The load capacity of the standard mast at different load centers can be known from this load chart.
Standard Configuration
Fork IWater Thermometer | Load Backrest | Overhead Guard | Electric Horn | Traction Pin | Fuel Gauge | Two-piece Multi-way Valve | Transmission Oil Filter Cartridge | Reversing Buzzer | Transmission Oil Dipstick | Neutra | Safty Switch | Overhead Guard Rain-cover | Air Intake Device | Durable Patterned | Tool Box | Wide-view Mast| Standard Seat | Headlamp | Rear Combined Lamp | Shaped Pedal Pad | Hydraulic Oil Dipstick | Lifting and Tilt Lever | Tilt Adjustable Steering Column
Optional Configuration
Driver's Cabin | Warning Light | Upper Exhaust | HeaterIFull Free 2-Stage Mast | Full Free 3-Stage Mast Special Size Fork | Side Shifter | Paper Roller Clamp | Brick Clamp | Rotator | Push-puller | Fork Positioner | Other Japanese Engines | Cooling Air Conditioner | Suspension Seat | Solid Tyre | Fire Extinguisher | Rear Working Light | Cylinder Sleeve | Full LED Lights | OPS(Travelling Function and Loading Function)
1. Comprehensive consideration of product quality1. Materials and manufacturing ...
READ MORE1. Energy efficiency and cost savings of electric forkliftsElectric forklift use...
READ MORE1. Improvement of charging efficiency: speed up turnover and shorten waiting tim...
READ MORE1. Importance of cooling systemThe cooling system of electric forklifts is mainl...
READ MORECompared with lithium-ion battery forklifts, lead-acid battery forklifts show un...
READ MORE1. High-precision navigation and positioning: the cornerstone of precise operati...
READ MOREAs a company that aspires to become a leading forklift manufacturer, Hecha Intelligent Equipment Co., Ltd.'s 4.0 - 5.0 ton diesel forklift production is undoubtedly a key link, which directly determines the quality and market competitiveness of the product. Hecha has demonstrated strong strength and foresight in the application of modern production facilities and equipment.
Located in Jiaxing City, Zhejiang Province, Hecha has a superior geographical location and covers an area of 48,000 square meters, which provides ample space for large-scale, modern production. On this vast land, Hecha has built modern production plants and production lines, which are equipped with advanced machinery and automatic control systems to ensure the accuracy, efficiency and stability of the production process.
In the core links of forklift production, such as engine manufacturing, body welding, painting, etc., Hecha has adopted internationally advanced production technology and equipment. For example, in engine manufacturing, Hecha may have introduced high-precision CNC machine tools, machining centers, etc., which can ensure the precise processing and assembly of engine parts, thereby improving the performance and reliability of the engine. At the same time, in the body welding process, Hecha may have adopted automated welding robots, which can perform precise welding according to preset procedures, which not only improves the welding quality, but also greatly reduces the difficulty and error of manual operation.
In the painting process, Hecha may have adopted advanced electrophoretic coating lines and spray painting equipment. The electrophoretic coating line can ensure the uniformity and adhesion of the coating on the body surface, and improve the anti-corrosion performance and aesthetics of the body. The spray painting equipment can ensure the gloss and color consistency of the coating, making the forklift more attractive in appearance.
In addition to production equipment, Hecha also pays attention to quality control and inspection during the production process. The company may have introduced advanced testing equipment, such as three-coordinate measuring machines, non-destructive testing instruments, etc., which can accurately measure and evaluate the various performance indicators of the forklift to ensure that every forklift shipped meets national standards and customer requirements.
In terms of production management, Hecha also adopts a modern production management system. This system can monitor key information such as production progress, inventory status, equipment operation status, etc. in real time, helping the company to adjust production plans and optimize resource allocation in a timely manner, thereby improving production efficiency and reducing costs. At the same time, the system can also realize the traceability and analysis of production data, providing strong support for the company's continuous improvement and innovation.
In terms of personnel training, Hecha has also invested a lot of resources. The company may regularly organize employees to participate in professional skills training and safety training to improve employees' professionalism and safety awareness. At the same time, the company also encourages employees to participate in technological innovation and quality management activities to stimulate employees' enthusiasm and creativity.
Hecha's 4.0 - 5.0 Ton Diesel Forklift is indeed manufactured using modern production facilities and equipment. These facilities and equipment not only improve production efficiency and product quality, but also reduce production costs and safety risks. At the same time, Hecha also pays attention to quality control and inspection in the production process, as well as the modernization of production management and the specialization of personnel training. These factors together constitute the core competitiveness of 4.0 - 5.0 Ton Diesel Forklift manufacturing, enabling it to stand out in the fierce market competition.
It is worth mentioning that Hecha also keeps up with the development trend of international modern industrial and logistics equipment, and is committed to integrating advanced concepts such as intelligence, energy saving and environmental protection into forklift products. Hecha's 4.0 - 5.0 Ton Diesel Forklift may be equipped with an intelligent control system and energy-saving device, which can monitor the vehicle's operating status and workload in real time, and automatically adjust the engine's output power and fuel consumption, thereby reducing energy consumption and emissions. The application of these innovative technologies not only improves the performance and efficiency of forklifts, but also meets the current social requirements for environmental protection and sustainable development.
