Hecha Rough terrain forklift is designed to solve problems in rugged and rough working conditions. Specifically for Agriculture Planting, Timber Forestry, Landscaping, and Mining.
Hecha Rough terrain forklift is designed to solve problems in rugged and rough working conditions. Specifically for Agriculture Planting, Timber Forestry, Landscaping, and Mining.
Characteristics | |||||
1.1 | Model Name | Metric | FD25Y | FD30 | FD35 |
1.2 | Power Source | Diesel | Diesel | Diesel | |
1.3 | Rated Capacity | kg | 2500 | 3000 | 3500 |
1.4 | Load Center | mm | 500 | 500 | 500 |

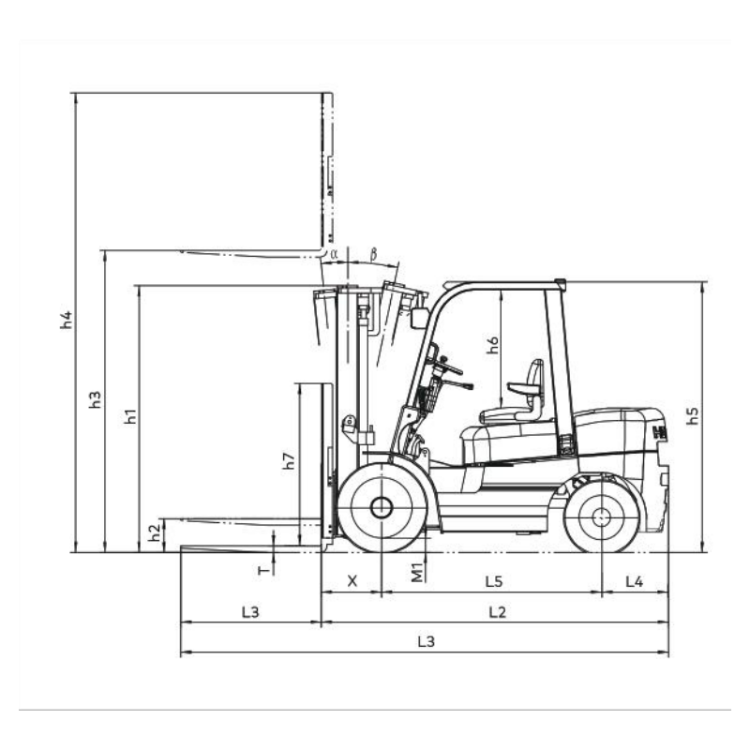

Dimensions | |||||
2.1 | Lifting Height | mm | 3000 | 3000 | 3000 |
2.2 | Overall Length (without Forks) | mm | 3020 | 3020 | 3020 |
2.3 | Front Wheel Base | mm | 1290 | 1290 | 1290 |
2.4 | Rear Wheel Base | 1280 | 1280 | 1280 | |
2.5 | Min. Ground clearance | mm | 245 | 245 | 245 |
2.6 | Min.Turning Radius(Outside) | mm | 2958 | 2958 | 2958 |
2.7 | Tilt of Mast Forward(deg)/Backward (deg)α/β |
0 | 10/12 | 10/12 | 10/12 |
2.8 | Fork size | mm | 1220*122*45 | 1220*122*45 | 1220*122*45 |
Specification | |||||
3.1 | Travel Speed (laden/unladen) | km/h | 20/22 | 20/22 | 20/22 |
3.2 | Lifting Speed(laden/unladen) | mm/s | 465/476 | 465/476 | 465/476 |
3.3 | Self Weight | kg | 4960 | 5160 | 5360 |
Tyre | |||||
4.1 | Number of Wheels | 2-2 | 2-2 | 2-2 | |
4.2 | Tyres Type | Pneumatic | Pneumatic | Pneumatic | |
4.3 | Dimensions of Front Wheels | 14-17.5-14PR | 14-17.5-14PR | 14-17.5-14PR | |
4.4 | Dimensions of Rear Wheels | 10-16.5-10PR | 10-16.5-10PR | 10-16.5-10PR | |
Brake, Transmission Devices and Engine | |||||
5.1 | Battery Voltage/Capacity | V/Ah | 12/80 | 12/80 | 12/80 |
52 Fuel Tank Capacity | L | 70 | 70 | 70 |
Note: The vertical axis stands for load capacity while the horizontal axis stands for load center. The load capacity of the standard mast at different load centers can be known from this load chart.
Standard Configuration
Fork| Water Thermometer | Load Backrest | Overhead Guard | Electric Horn | Traction Pin | Fuel Gauge | Two-piece Multi-way Valve | Transmission Oil Filter Cartridge | Reversing Buzzer | Transmission Oil Dipstick |Neutral Safty Switch |Overhead Guard Rain-cover I Air Intake Device | Durable Patterned | Tool BoxI Wide-view Mast | Standard Seat | Headlamp| Rear Combined Lamp| Shaped Pedal Pad | Hydraulic Oil Dipstick | Lifting and Tilt Lever | Tilt Adjustable Steering Column
Optional Configuration
Driver's Cabin | Warning Light | Upper Exhaust | Heater | Full Free 2-Stage Mast | Full Free 3-Stage Mast| Special Size Fork |Side Shifter |Paper Roller Clampl Brick Clamp I Rotator I Push-puller |Fork Positioner I Other Japanese Engines |Cooling Air Conditioner | Suspension Seat | Solid Tyre |Fire Extinguisher | Rear Working Light | Cylinder Sleeve | Full LED Lights |OPS (Travelling Function and Loading Function)
1. Comprehensive consideration of product quality1. Materials and manufacturing ...
READ MORE1. Energy efficiency and cost savings of electric forkliftsElectric forklift use...
READ MORE1. Improvement of charging efficiency: speed up turnover and shorten waiting tim...
READ MORE1. Importance of cooling systemThe cooling system of electric forklifts is mainl...
READ MORECompared with lithium-ion battery forklifts, lead-acid battery forklifts show un...
READ MORE1. High-precision navigation and positioning: the cornerstone of precise operati...
READ MOREIn the dynamic world of logistics and material handling, encountering diverse and often challenging terrains is an everyday reality. From bustling construction sites to expansive mining operations and demanding agricultural fields, the need for a versatile, durable, and reliable forklift is crucial. Among the numerous options on the market, the 4WD Rough Terrain Forklift from Hecha Intelligent Equipment Co., Ltd. emerges as a standout candidate capable of transforming logistics operations.
Nestled in Jiaxing City, Zhejiang Province, Hecha Intelligent Equipment Co., Ltd. benefits from a strategic location that places it just an hour's drive from Shanghai. This proximity not only provides the company with easy access to international markets but also enables it to leverage the technological advancements and resources available in China's eastern coast. Spread across a generous 48,000 square meters, Hecha's facility is equipped with state-of-the-art production machinery and infrastructure, setting the stage for the manufacturing of exceptional forklifts and logistics equipment.
Hecha's commitment to professional focus and innovation is reflected in its diverse range of products, including internal combustion counterbalanced forklifts, battery counterbalanced forklifts, and electric logistics handling equipment. However, it's the 4WD Rough Terrain Forklift that truly captivates attention. Engineered to tackle the harshest terrains, this forklift combines powerful 4-wheel drive capabilities with a rugged construction, making it the perfect choice for operations in uneven, muddy, or off-road conditions.
The 4WD Rough Terrain Forklift from Hecha is designed with precision and robustness in mind. Equipped with a robust diesel engine or an efficient electric motor (depending on the model), it delivers the torque and power required to traverse difficult terrains with ease. The 4-wheel drive system ensures optimal traction and stability, even on the most uneven surfaces, allowing operators to maintain productivity and safety without compromise.
