Hecha LPG forklift is powered by liquid propane gas (LPG) and gasoline, The dual-fuel design is more flexible and efficient, suitable for operation in low-temperature environments, low pollution, and environmentally friendly.
Hecha LPG forklift is powered by liquid propane gas (LPG) and gasoline, The dual-fuel design is more flexible and efficient, suitable for operation in low-temperature environments, low pollution, and environmentally friendly.
Characteristics | ||||||
1.1 | Model Name | hydraulic | FD20G | FD25G | FD30G | FD35G |
1.2 | Power Type | Gasoline | Gasoline | Gasoline | Gasoline | |
1.3 | Rated Load Capacity | kg | 2000 | 2500 | 3000 | 3500 |
1.4 | Load Center | mm | 500 | 500 | 500 | 500 |
Dimensions | ||||||

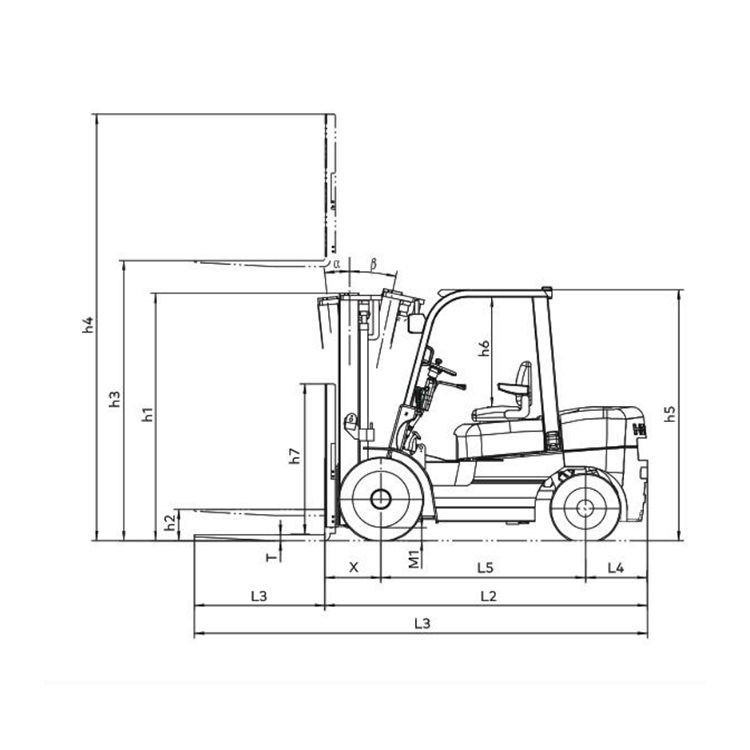

2.1 | Mast Extended Height (with Brackrest) | mm | 4060 | 4060 | 4275 | 4270 |
2.2 | Lifting Height | mm | 3000 | 3000 | 3000 | 3000 |
2.3 | Mast Height, Lowered | mm | 2060 | 2060 | 2080 | 2125 |
2.4 | Free Lift Height | mm | 140 | 140 | 145 | 150 |
2.5 | Backrest Height (Calculated from the Fork Surface) | mm | 1010 | 1010 | 1225 | 1220 |
2.6 | Distance from the Surface of the Seat to the Overhead Guard |
mm | 1035 | 1035 | 1035 | 1035 |
2.7 | Overhead Guard Height | mm | 2090 | 2090 | 2106 | 2106 |
2.8 | Overall Length (without Forks) | mm | 2475 | 2550 | 2690 | 2725 |
2.9 | Overall Length (with Forks) | mm | 3545 | 3620 | 3760 | 3795 |
2.10 | Fork Overhang | mm | 435 | 435 | 465 | 465 |
2.11 | Wheel Base | mm | 1600 | 1600 | 1700 | 1700 |
2.12 | Real Overhang | mm | 440 | 515 | 525 | 560 |
2.13 | Min. Ground Clearance (from Bottom of Mast) | mm | 128 | 128 | 145 | 145 |
2.14 | Overall Width | mm | 1150 | 1150 | 1225 | 1225 |
2.15 | Lateral Fork Adjustment (Outside of Fork)(max./min.) | mm | 1024/240 | 1024/240 | 1091/250 | 1091/250 |
2.16 | Front Tread | mm | 970 | 970 | 1000 | 1000 |
2.17 | Rear Tread | mm | 970 | 970 | 970 | 970 |
2.18 | Turning Radius(Outside) | mm | 2170 | 2240 | 2420 | 2470 |

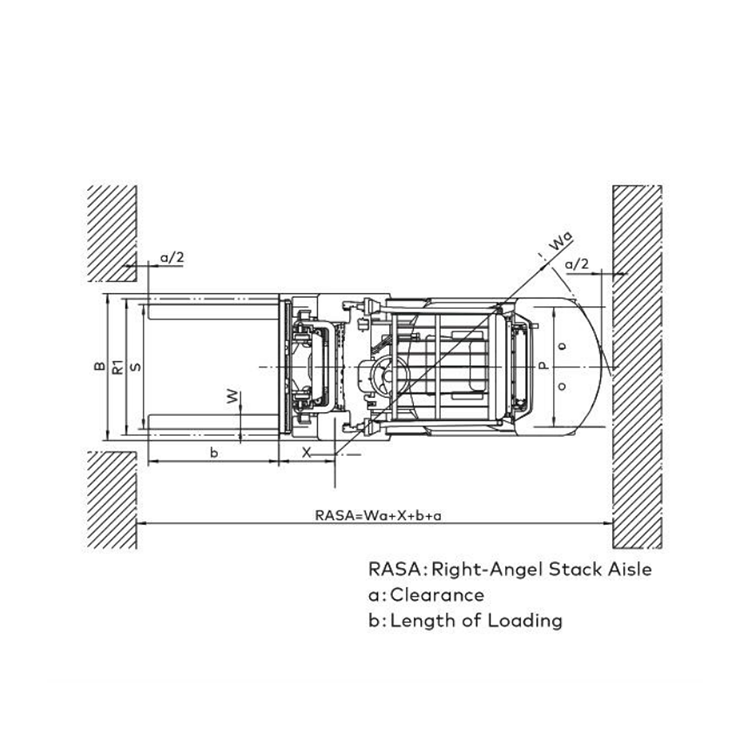

2.19 | Min. Right Angle Stacking Aisle Width | mm | 2200 | 2280 | 2380 | 2400 |
2.20 | Fork Size | mm | 1070*120*40 | 1070*120*40 | 1070*125*45 | 1070*125*50 |
Specification | ||||||
3.1 | Travel Speed | km/h | 17/19.5 | 17/19.5 | 18/19.5 | 18/19.5 |
3.2 | Lifting Speed (laden /unladen) | mm/s | 570/600 | 570/600 | 450/500 | 380/450 |
3.3 | Self Weight | kg | 3410 | 3770 | 4370 | 4750 |
Tyre | ||||||
4.1 | Number of Drive Wheels | 2X/2 | 2X/2 | 2X/2 | 2X/2 | |
4.2 | Tyres Type | pneumatic | pneumatic | pneumatic | pneumatic | |
4.3 | Dimensions of Front Wheels | 7.00-12-12PR | 7.00-12-12PR | 28×9-15-12PR | 28×9-15-12PR | |
4.4 | Dimensions of Rear Wheels | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | |
Brake, Transmission Devices, and Engine | ||||||
5.1 | Battery Voltage/Capacity | V/Ah | 12/80 | 12/80 | 12/80 | 12/80 |
5.2 | Engine Model | NISSAN K25 | NISSAN K25 | NISSAN K25 | NISSAN K25 | |
5.3 | Rated Output/r.p.m | kW/rpm | 37.4/2300 | 37.4/2300 | 37.4/2300 | 37.4/2300 |
5.4 | Rated Torque/r.p.m | N.m/rpm | 176.5/1600 | 176.5/1600 | 176.5/1600 | 176.5/1600 |
5.5 | No.of Cylinder | 4 | 4 | 4 | 4 | |
5.6 | Displacement | L | 2.488 | 2.488 | 2.488 | 2.488 |
5.7 | Fuel Tank Capacity | L | 60 | 60 | 70 | 70 |
5.8 | Transmissions type | hydraulic | hydraulic | hydraulic | hydraulic |

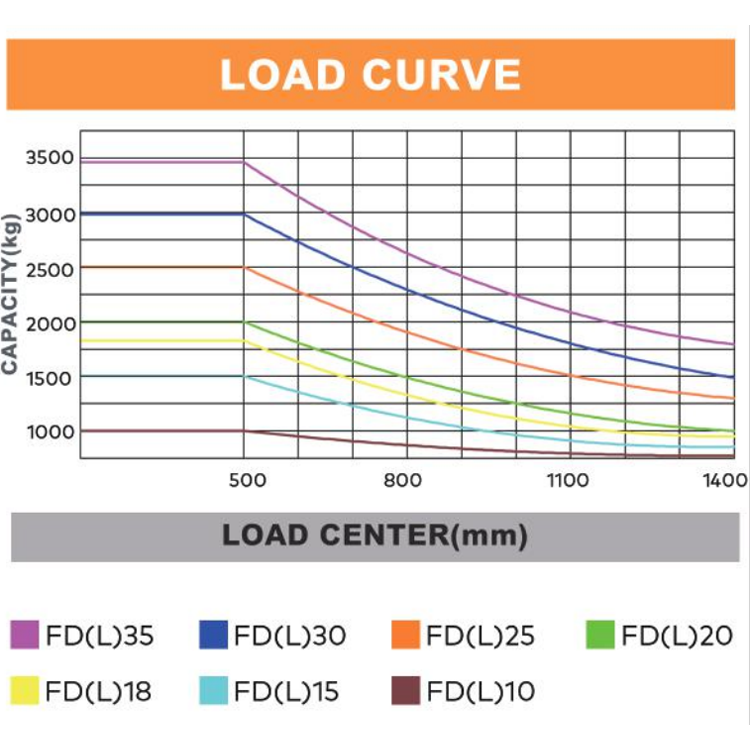

Note: The vertical axis stands for load capacity while the horizontal axis stands for load center. The load capacity of the standard mast at different load centers can be known from this load chart.
Standard Configuration
Fork| Water Thermometer | Load Backrest | Overhead Guard | Electric Horn | Traction Pin | Fuel Gauge | Two-piece Multi-way Valve | Transmission Oil Filter Cartridge | Reversing Buzzer | Transmission Oil Dipstick |Neutral Safty Switch |Overhead Guard Rain-cover I Air Intake Device | Durable Patterned | Tool BoxI Wide-view Mast | Standard Seat | Headlamp| Rear Combined Lamp| Shaped Pedal Pad | Hydraulic Oil Dipstick | Lifting and Tilt Lever | Tilt Adjustable Steering Column
Optional Configuration
Driver's Cabin | Warning Light | Upper Exhaust | Heater | Full Free 2-Stage Mast | Full Free 3-Stage Mast| Special Size Fork |Side Shifter |Paper Roller Clampl Brick Clamp I Rotator I Push-puller |Fork Positioner I Other Japanese Engines |Cooling Air Conditioner | Suspension Seat | Solid Tyre |Fire Extinguisher | Rear Working Light | Cylinder Sleeve | Full LED Lights |OPS (Travelling Function and Loading Function)
1. Comprehensive consideration of product quality1. Materials and manufacturing ...
READ MORE1. Energy efficiency and cost savings of electric forkliftsElectric forklift use...
READ MORE1. Improvement of charging efficiency: speed up turnover and shorten waiting tim...
READ MORE1. Importance of cooling systemThe cooling system of electric forklifts is mainl...
READ MORECompared with lithium-ion battery forklifts, lead-acid battery forklifts show un...
READ MORE1. High-precision navigation and positioning: the cornerstone of precise operati...
READ MOREIn the rapidly developing modern logistics industry, as the core equipment for handling and stacking, the performance and efficiency of forklifts are directly related to the operating costs and competitiveness of enterprises. Faced with the growing environmental pressure and intelligent demand, 1.5 -3.5 ton liquefied petroleum gas (LPG) forklifts are gradually becoming the first choice of many companies with their unique advantages. So, in this highly competitive market, how to choose a 1.5 -3.5 ton LPG forklift that can meet the needs of efficient operation and take into account environmental protection and intelligence?
Hecha Intelligent Equipment Co., Ltd. is located in the beautiful Jiaxing City, only an hour's drive from the international metropolis of Shanghai, and has a unique geographical location. The company covers an area of 48,000 square meters and has modern production facilities and equipment. It is a bright new star in the industry. Hecha firmly believes that professionalism and focus are the core driving force for the development of enterprises. Following the general trend of the transformation of international modern industrial and logistics equipment towards convenience, intelligence, energy saving and environmental protection, Hecha is determined to become a leader in the forklift manufacturing industry and provide customers with a full range of logistics equipment solutions, including one-stop services such as forklift parts supply, maintenance, and leasing.
In the field of LPG forklifts, Hecha's product line is rich and diverse, especially its 1.5-3.5 ton LPG forklifts, which have won wide recognition in the market with their outstanding performance and environmental protection characteristics. These forklifts not only inherit the powerful power output and stable operating performance of internal combustion forklifts, but also greatly reduce emissions by adopting advanced LPG fuel technology, which meets the current global urgent need for green logistics. At the same time, they are also equipped with intelligent control systems that can automatically adjust power output according to actual operating conditions to achieve optimal management of energy consumption, truly achieving a perfect combination of high efficiency and environmental protection.
Hecha's 1.5-3.5 ton LPG forklifts are designed with full consideration of the diverse needs of users. Whether it is flexible operation in a narrow space or efficient and stable handling of heavy objects, these forklifts can easily cope with it. Its compact body structure and small turning radius make it easier to operate in complex environments such as warehouses, docks, and factories. In addition, according to different application scenarios, Hecha also provides a variety of optional configurations, such as side shifters, rotating forks, telescopic arms, etc., to meet the personalized needs of customers.
In terms of product quality, Hecha always adheres to high standards and strict requirements. All products have passed the ISO-9001 quality management system certification and the European CE safety certification, and have also obtained the inspection certificate of the China National Engineering Machinery Quality Supervision and Inspection Center. These authoritative certifications are not only a recognition of Hecha's product quality, but also a guarantee of customer commitment.
Hecha also has a strong R&D team. As of now, the company has 9 registered trademarks and 79 patents, demonstrating its deep strength in technological innovation. The application of these patented technologies not only improves the performance of forklifts, but also promotes the intelligent development of the entire logistics industry.
In terms of sales and service, Hecha has established a sales network covering the whole country and even the world, with more than 100 domestic sales agents and more than 30 overseas partners. Whether it is pre-sales consultation, product selection, after-sales maintenance or technical support, Hecha can provide customers with direct, comprehensive and efficient services, and has won wide acclaim from customers and the industry.
