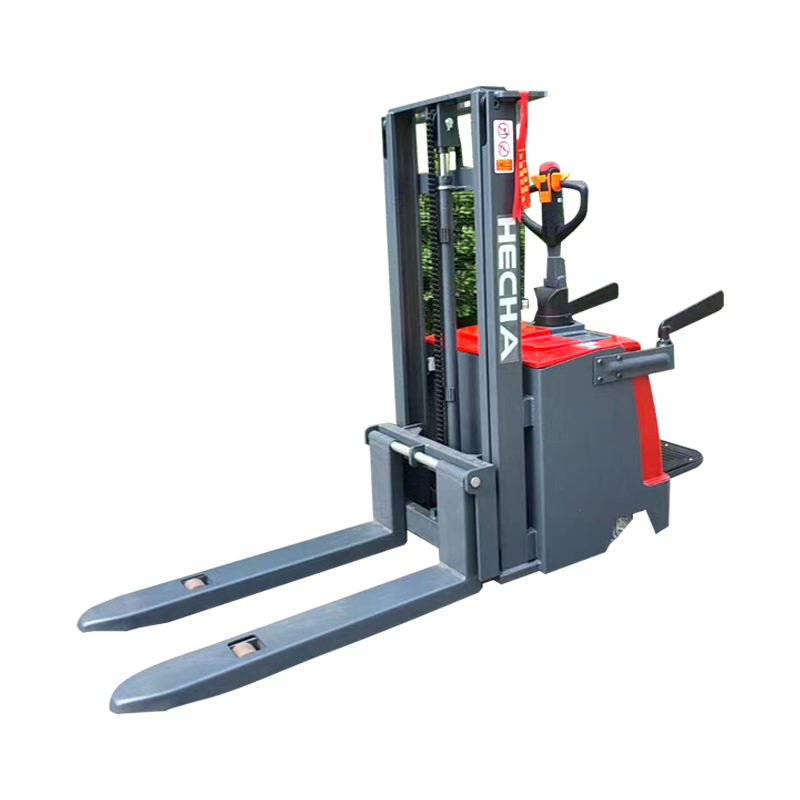

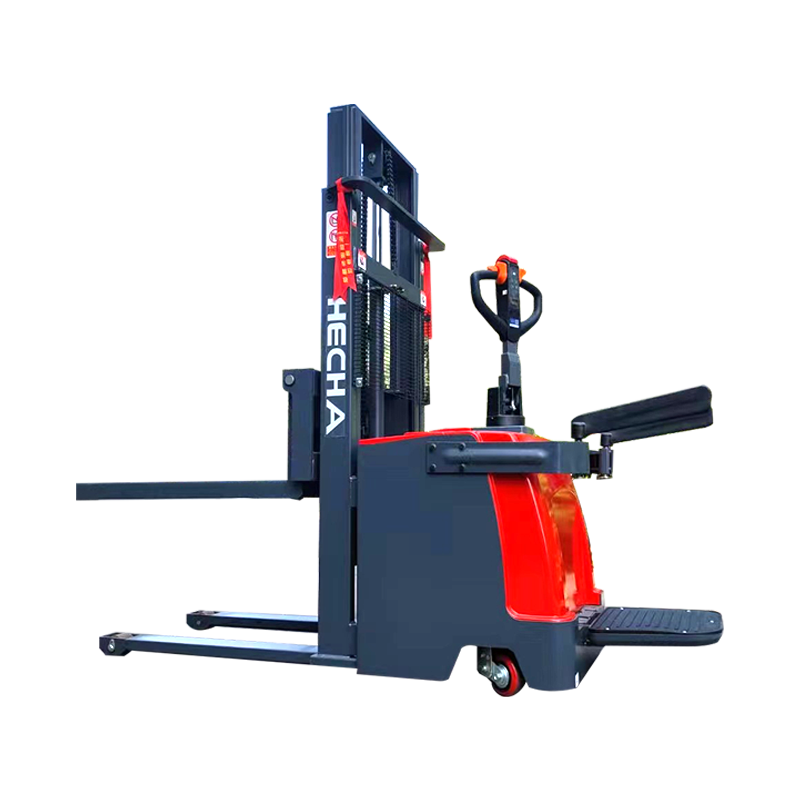

Electric Stacker（Stand-on Type）

The dimensions of the maneuverable, all-electric stacker truck are for use in small warehouses, The lifting height ranges from 2 meters to 6 meters.

With Horizontal drive, drive wheels are able-dismantled and easy to replace.
The mast is reinforced by precise steel side-rollers that perform guiding to lessen the friction, which improves the mast's stability.
Standard 1244leaf chain replaces traditional roller chain, which is safer to lift cargo.
The mast is made of special sectional steel, which makes the lifting safer and reliable.
Straddle legs are made of solid flatiron that makes lifting safer. O With a rider platform that performs shock absorption.
Configured with King-lift Dedicated controller, AIBRIGHT contactor, AMP water-proof connector assembly of power supply, plus high-frequency MOS tube integrated control, as well as peculiar integration forklift control system, which makes control of travel stable and accurate, and enables the speed governing .
Designed with a multiplied brake-power-off brake of the electromagnetic clutch, regenerating brake, reversal brake, and anti-skid brake on the ramp.
Sleeve type of adjustable goods forks are more flexible and convenient to operate.
Cut off the power supply automatically at the top lifting height.
Can implement upright travel with turtlespeed.

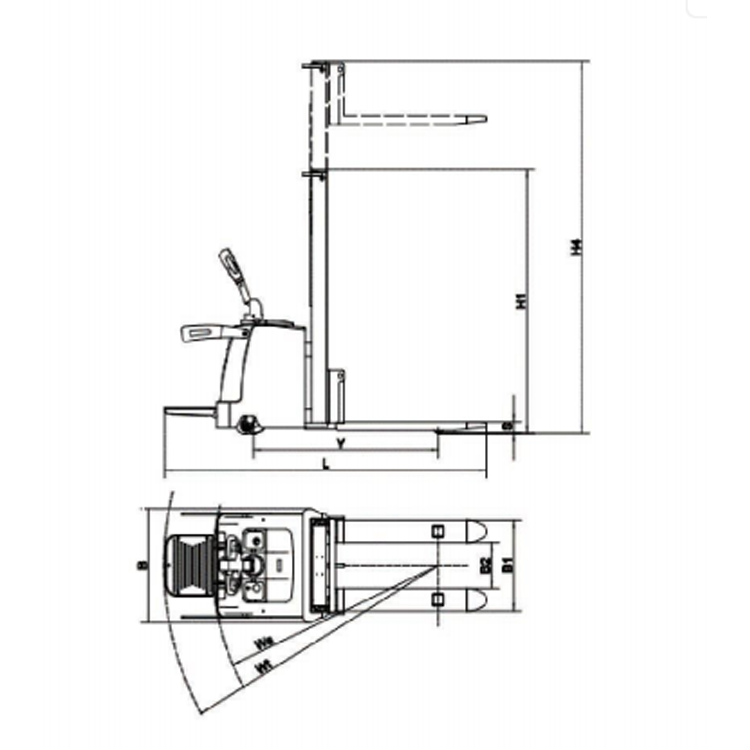

	MODEL			HCD20EA	HCD20EC
Performance	Maximum load capacity		kg	2000	2000
	Load center	Q	mm	600	600
	Maximum lifting height	H3	mm	1600	1600
	Travel speed (without load)		km/h	5.5	5.5
	Travel speed (with load)		km/h	5	5
	Lifting speed (without load)		mm/s	121	121
	Lifting speed (with load)		mm/s	81	81
	Lowering speed (without load)		mm/s	105	105
	Lowering speed (with load)		mm/s	103	103
	Gradeabiity (without load)		%	7	7
	Gradeability(with load		%	6	6
	ServiceWeight(with battery)		kg	850	880
	Overall length of frame	L	mm	2172	2172
	Overall length of frame(with platform)		mm	2574	2574
	Overall width of frame	B	mm	854	854
	Overall height when mast lowerd to	H1	mm	2090	2090
	Overall height when mas liftedto	H4	mm	2090	2090
	Wheelbase	Y	mm	1420	1420
	Fork length		mm	1150	1150
	Fork outside width	B1	mm	680	680
	Fork inside width	B2	mm	300	300
	Fork thickness		mm	65	65
	Fork height when fork lowered to	S	mm	90	90
	Min ground clearance		mm	15	15
	Theoretical width of aisle for right-angle stacking(1200x1000)	Asts	mm	2490	2490
	Minimum turning radius (without platform)	Wa	mm	1813	1813
	Minimum turning radius (with platform)	Wal	mm	2207	2207
	Front-wheel		mm	85*70	85*70
	Drive wheel		mm	250*80	250*80
	Caster wheel		mm	130*55	130*55
	Wheel material		polyurethane
Electrical components	Dive motor type		AC series motor
	Rated output		kw	1.5	1.5
	Hoist motor type		DC series motor
	Rated output		kw	2.2	2.2
battery	Voltage		V	24	24
	Capacity		AH	160	160
	Weight		kg	150	150

Mast Type	Max fork height	Mast lowered	Mast extended
Mast Type	HCD20EA/EC	HCD20EA/EC	HCD20EA/EC
Simplex orDuplex mast (2Stage)	2000	1480	2460
	2500	1730	2960
	3000	1980	3460
	3500	2230	3960
	4000	2480	4460

Industry knowledge

In which industries are stand-on electric stackers widely used?

Stand-on electric stackers are widely used in many industries due to their flexibility and efficiency. Combined with the company introduction and product features of Hecha Intelligent Equipment Co., Ltd., the following are several industries where stand-on electric stackers are mainly used:

Warehousing and logistics industry:
In warehousing and logistics centers, stand-on electric stackers are indispensable logistics equipment. They are widely used in tasks such as stacking, handling, loading and unloading of goods, and short-distance transportation, greatly improving the operating efficiency of warehouses and the circulation speed of goods.

Manufacturing:
In the manufacturing industry, stand-on electric stackers also play an important role. They are used for the handling of raw materials, parts and finished products, as well as material distribution on production lines. The precise controllability and carrying capacity of electric stackers make the production process of the manufacturing industry smoother and improve production efficiency.

Cold chain industry:
The cold chain industry has high requirements for logistics equipment. Stand-on electric stackers are widely used in cargo handling in cold storage and freezers because of their environmental protection, energy saving and stable operation in low temperature environments. They ensure the quality and safety of sensitive items such as food and medicine during transportation and storage.

Airports and ports:
Stand-on electric stackers are also used for loading and unloading and short-distance transportation of goods in transportation hubs such as airports and ports. Their compact design, flexible maneuverability and strong carrying capacity enable them to work efficiently in narrow passages and complex environments.

Construction sites and mining industries:
In construction sites and mining industries, stand-on electric stackers are used for handling and stacking of construction materials, as well as short-distance transportation of heavy objects such as ores. They are sturdy and durable, and can withstand harsh working environments and high-intensity operating requirements.

As a professional electric stacker manufacturer and service provider, Hecha Intelligent Equipment Co., Ltd.'s stand-on electric stacker products have been widely used and recognized in the above industries due to their high quality, multi-function and environmental protection and energy saving characteristics. At the same time, the company also provides comprehensive pre-sales, sales and after-sales services to ensure customers' convenience and efficiency during use.
