Custom Electric Forklift (Diesel Body)

Home / Products / Electric Forklift / Lead-acid Battery Forklift / Electric Forklift (Diesel Body)
View All Projects

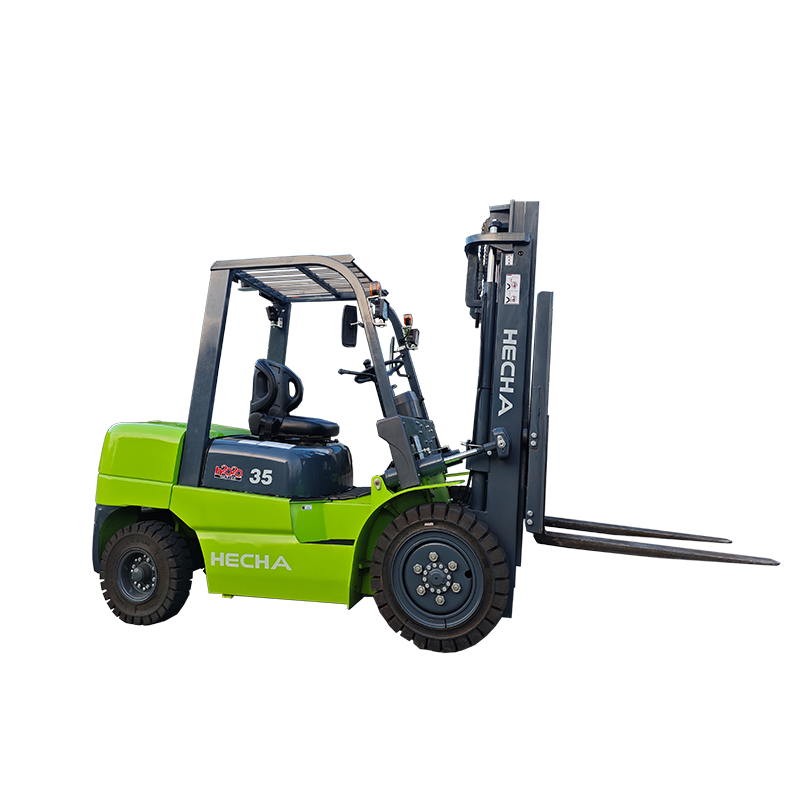

Electric Forklift (Diesel Body)

Electric Forklift (Diesel Body)

Lead-acid battery forklifts have good stability, strong anti-puncture ability, good safety performance, mature technology， and are not easy to burn or explode.

  • Electric Forklift (Diesel Body)
  • Electric Forklift (Diesel Body)
  • Electric Forklift (Diesel Body)
  • Electric Forklift (Diesel Body)
View All Projects
Get A Quotation
PREV：No previous articleNEXT：No next article
Characteristics
1.1  Model Name metric FB15 FB20 FB25 FB30 FB35
1.2  Power Source Lead acid
battery(Li-ion
battery for
option)		 Lead acid
battery(Li-ion
battery for
option)		 Lead acid
battery (Li-ion
battery for
option)		 Lead acid
battery(Li-ion
battery for
option)		 Lead acid
battery(Li-ion
battery for
option)

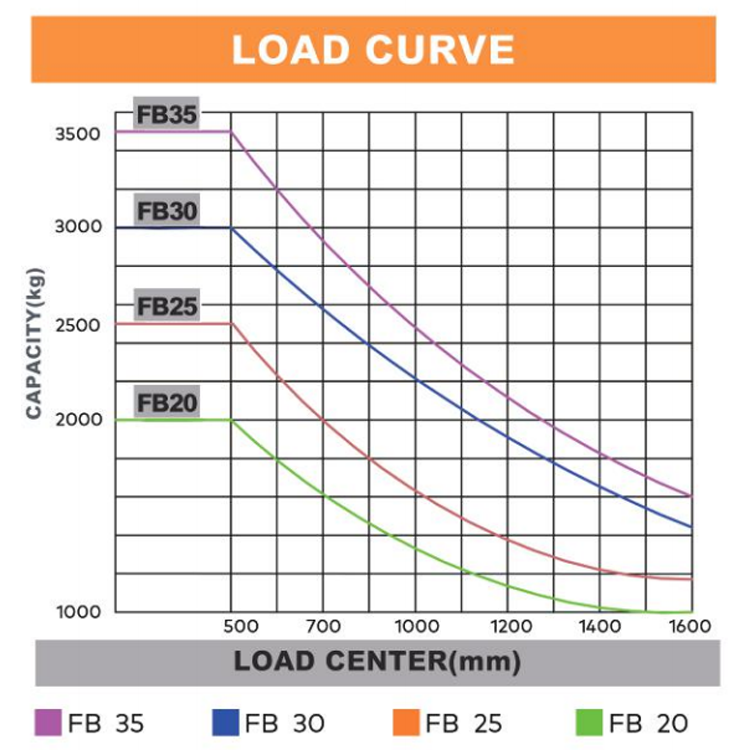

1.3  Rated Capacity kg 1500 2000 2500 3000 3500
1.4  Load Center mm 500 500 500 500 500

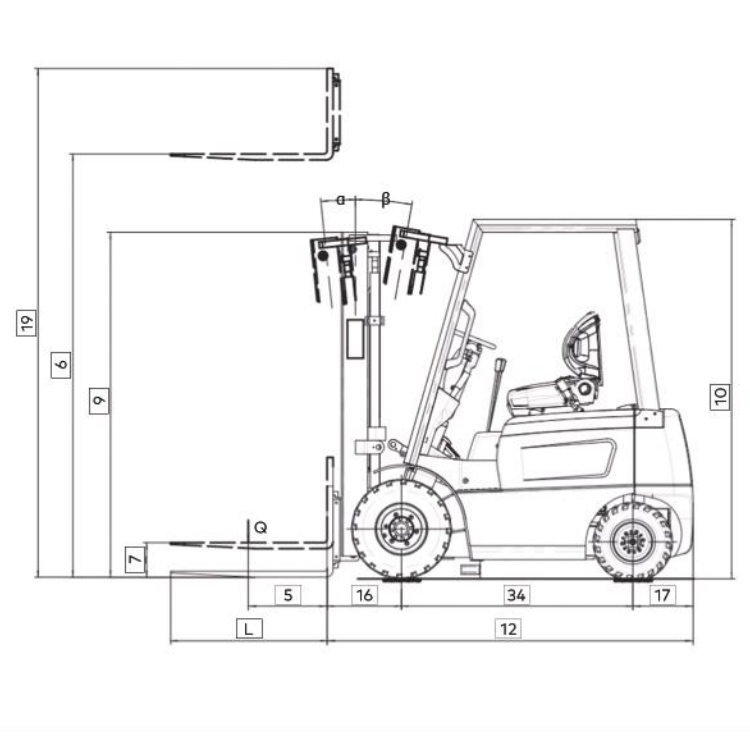

Dimension
2.1  Wheels, X=Driven Wheels (Front/Rear) 2x/2 2x/2 2x/2 2x/2 2x/2
2.2  Overall Length(Without Forks) mm 1955  2245  2285  2510  2550
2.3  Overall Width mm 1070  1150  1150  1225  1225
2.4  Mast Height, Lowered mm 1995  1995  1995  2080  2125
2.5  Max Lifting Height Of Fork(With Backrest) mm 4030  4030  4030  4260  4260
2.6  Overhead Guard Height mm 2100  2145  2145  2190  2190
2.7  Fork Size L×W×T mm 920x100x35 1070x122x40 1070x122x40 1070x125x40 1070x125×50
2.8  Mast Tilt Angle a/β deg 6/12 6/12 6/12 6/12 6/12
2.9  Ground Clearance, Below Mast mm 105  110  110  140  140
2.10  Ground Clearance, Below Chassis mm 95  115  115  120  120
2.11  Fork Overhang mm 375  445  445  485  485

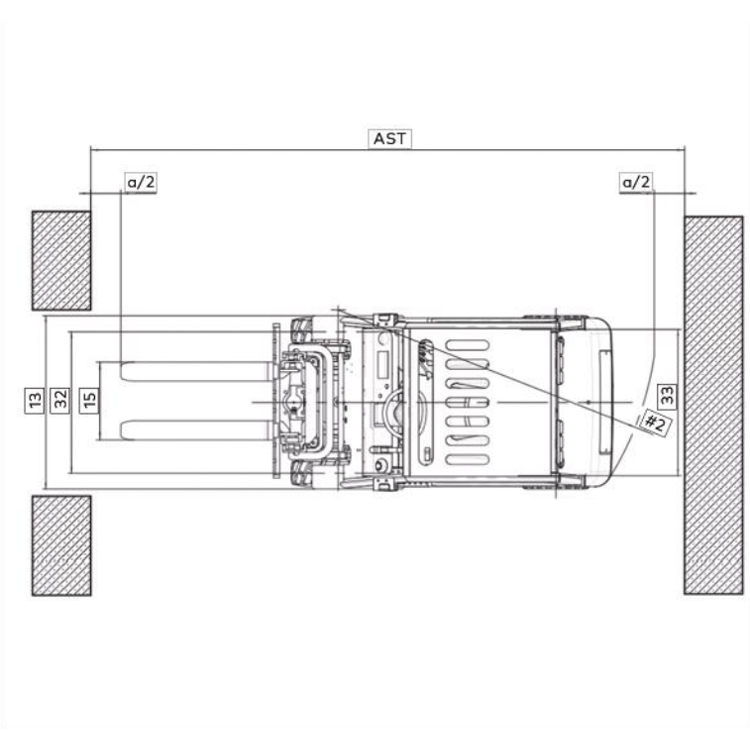

2.12  Min. Right Angle Stacking Aisle Width mm 1770  1885  1935  2080  2100
2.13  Lateral Fork Adjustment (Outside Of Fork)(Max./Min.) mm 200-920 245-1020 245-1020 250-1060 250-1060
2.14  Turning Radius kg 2690  3400  3820  4660  5050
Specification
3.1  Lifting Speed(Laden) mm/s 350  240  240  290  290
3.2  Lifting Speed(Unladen) mm/s 530  450  450  490  490
3.3  Travelling Speed(Laden) km/h 14  13.5  13.5  13.5  13.5
3.4  Travelling Speed(Unladen) km/h 16  15  14.5  15  15
3.5  Gradeability(Laden) % 15  12.5  12.5  12.5  12.5
3.6  Battery Voltage/Capacity(5 Hours) v/ah 48/400 48/450 48/560 72/480` 72/560
3.7  Battery Weight(With Box,Standard) kg 735  825  945  1220  1380
3.8  Li-lon Battery, Voltage/Capacity v/ah 80/220 80/220 80/220 80/420 80/420
3.9  Drive Motor Power kw/60min 8  11  11  16.5  16.5
3.10  Dc/Ac-Hydraulic Motor kw/60min 8.2/10 8.6/12 8.6/12 10/13.5 10/13.5
Tyre
4.1  Tyre Type(Front/Rear) pneumatic pneumatic pneumatic pneumatic pneumatic
4.2  Wheel Number(Front/Rear) 2/2 2/2 2/2 2/2 2/2
4.3  Wheel Size, Front 6.00-9-10-10PR 21x8-9-16PR 21x8-9-16PR 28x9-15-12PR 28x9-15-12PR
4.4  Wheel Size, Rear 16x6-8-10PR 18x7-8-14PR 18x7-8-14PR 18x7-8-14PR 18x7-8-14PR
4.5  Front Tread mm 910  955  955  1000  1000
4.6  Rear Tread mm 900  950  950  950  950
4.7  Wheelbase mm 1250  1400  1400  1600  1600
About Us
Hecha Intelligent Equipment Co., Ltd.
Hecha Intelligent Equipment Co., Ltd.
Hecha Intelligent Equipment Co., Ltd. is located in Jiaxing City, Zhejiang Province, just an hour's drive from Shanghai, and has a geographical location. The enterprise spans 48,000 square meters and boasts modern production facilities and equipment. The company considers professional focus to be its core competitiveness, follows the trend of international modern industrial and logistics equipment toward convenience, intelligence, energy savings, and environmental protection, and is determined to become a forklift manufacturer, providing customers with high-quality logistics equipment solutions, forklift parts supply, forklift maintenance, leasing, and other services.
Hecha Intelligent Equipment Co., Ltd. is China Custom Electric Forklift (Diesel Body) Suppliers and OEM/ODM Electric Forklift (Diesel Body) Suppliers. The company's current products primarily include internal combustion counterbalanced forklifts, battery counterbalanced forklifts, electric logistics handling equipment, and so on, can be outfitted with various functions to meet the stacking, loading, unloading, and handling needs of customers in various locations and environments.
The company's products have ISO-9001 certification, European CE certification, and inspection certificates from China's National Engineering Machinery Quality Inspection Centre. The company holds 9 trademarks and 79 patents, demonstrating its technological strength and innovative capabilities.
The company has a comprehensive sales network at home and abroad, with over 100 sales agency service providers in China and over 30 outside. Customers and industry praise the company for providing the direct, comprehensive, and efficient pre-sales, sales, and after-sales services.
Certificate Of Honor
  • Quality management system
  • Occupational health
  • Environmental management system
  • CE
  • CE
  • CE
  • ISO
  • Production License
  • Business School Case Studies
  • Manufacturing Center Certification
  • Technology Center Certification
  • Charity Company
News

Industry knowledge

What are the maintenance points of diesel electric forklifts?

The maintenance points of diesel electric forklifts are essential to ensure their long-term stable operation and extend their service life. Combining the professional fields and product features of Hecha Intelligent Equipment Co., Ltd., the following is a detailed analysis of the maintenance points of diesel electric forklifts:

1. Engine maintenance
Regular inspection and replacement of engine oil: Ensure that the engine is clean inside to reduce wear and failure.
Check the coolant: Keep the coolant sufficient and clean to prevent the engine from overheating.
Clean the air filter: Prevent dust and impurities from entering the engine and affecting its performance.

2. Electrical system maintenance
Check the battery: For auxiliary batteries in diesel electric forklifts (such as starting batteries), their voltage, electrolyte specific gravity and connection lines should be checked regularly for looseness.
Maintain electrical components: Ensure that the electrical system contacts are good and there is no looseness or corrosion.

3. Transmission system maintenance
Check the gearbox: Regularly replace the gearbox oil and filter to ensure a smooth transmission system.
Check the drive shaft and universal joint: make sure they are not loose, worn or damaged.

4. Brake system maintenance
Check the brake pads and brakes: regularly replace worn brake pads and brakes to ensure good braking performance.
Check the brake fluid: keep the brake fluid sufficient and clean to prevent the brake system from failing.

5. Hydraulic system maintenance
Check the hydraulic oil: regularly replace the hydraulic oil and filter to ensure that the hydraulic system is clean and smooth.
Check the hydraulic components: such as hydraulic pumps, hydraulic cylinders, etc., to ensure that they are not leaking, worn or damaged.

6. Body and tire maintenance
Clean the body: regularly clean the forklift body to remove oil and dust and keep it clean.
Check the tires: regularly check the tire pressure, wear and cracks to ensure that the tires are in good condition.

7. Regular inspection and maintenance
Perform a comprehensive inspection: regularly conduct a comprehensive inspection of the forklift, including the tightening of each component, oil leakage, and the working condition of the electrical system.
Perform maintenance according to the maintenance manual: Follow the maintenance manual or user guide provided by Hecha Intelligent Equipment Co., Ltd. and perform maintenance according to the prescribed maintenance cycles and items.

<
