Custom 2-3.5Ton Electric Forklift

Home / Products / Electric Forklift / Lithium Forklifts / 2-3.5Ton Electric Forklift
View All Projects

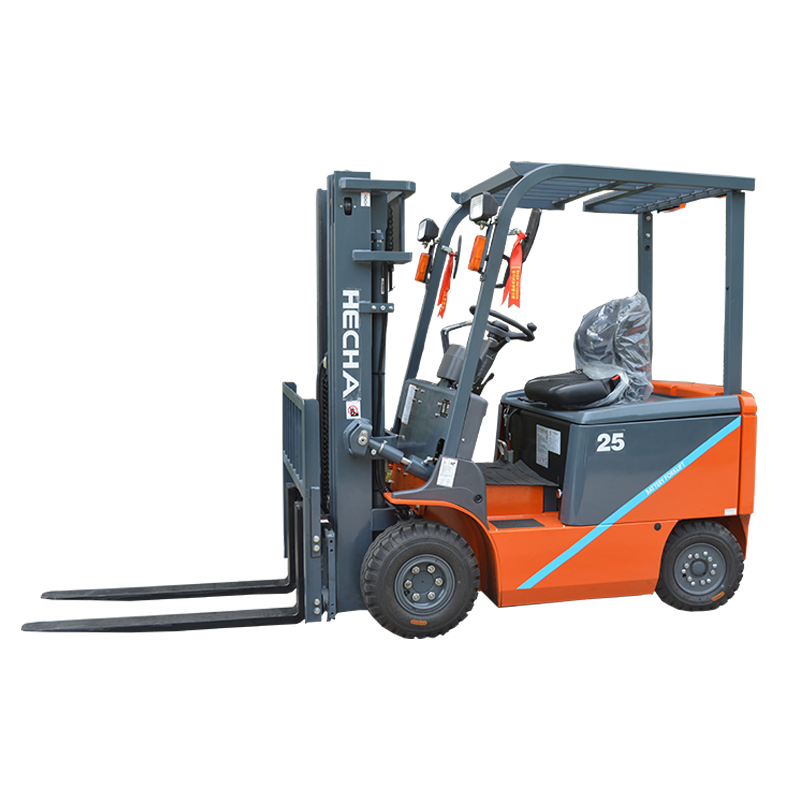

2-3.5Ton Electric Forklift

2-3.5Ton Electric Forklift

Lithium-ion forklifts achieve zero emissions, low noise, and are environmentally friendly.
Lithium batteries have a long cycle life and high durability. Compared with traditional lead-acid batteries, they have a longer service life and lower maintenance costs.
Lithium batteries charge quickly and can be fully charged quickly, reducing waiting time.

  • 2-3.5Ton Electric Forklift
View All Projects
Get A Quotation
PREV：No previous articleNEXT：No next article
Characteristics
1.1 Model Name metric FB15 FB20 FB25 FB30 FB35
1.2 Power Source Lead acid
battery(Li-ion
battery for
option)		 Lead acid
battery(Li-ion
battery for
option)		 Lead acid
battery (Li-ion
battery for
option)		 Lead acid
battery(Li-ion
battery for
option)		 Lead acid
battery(Li-ion
battery for
option)
1.3 Rated Capacity kg 1500  2000  2500  3000  3500

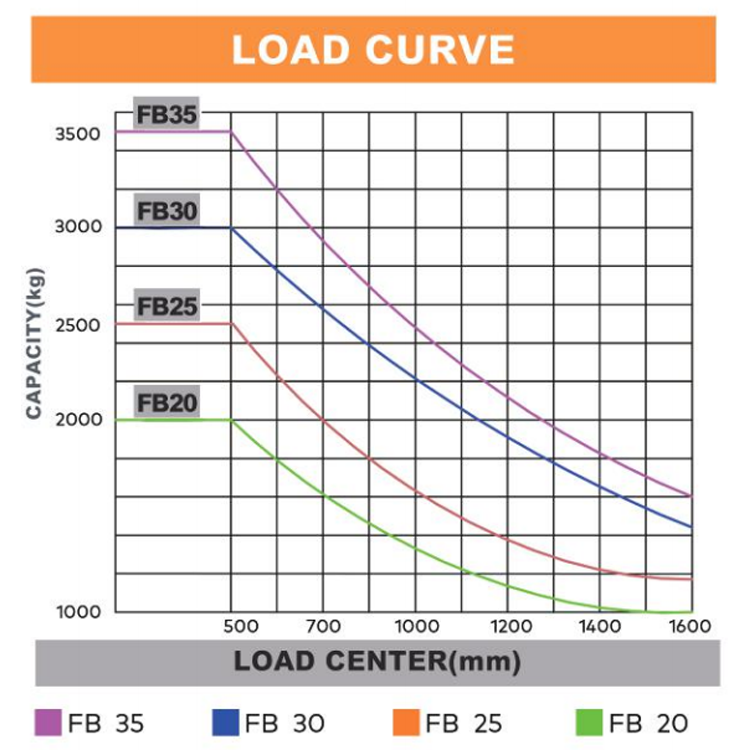

1.4 Load Center mm 500  500  500  500  500

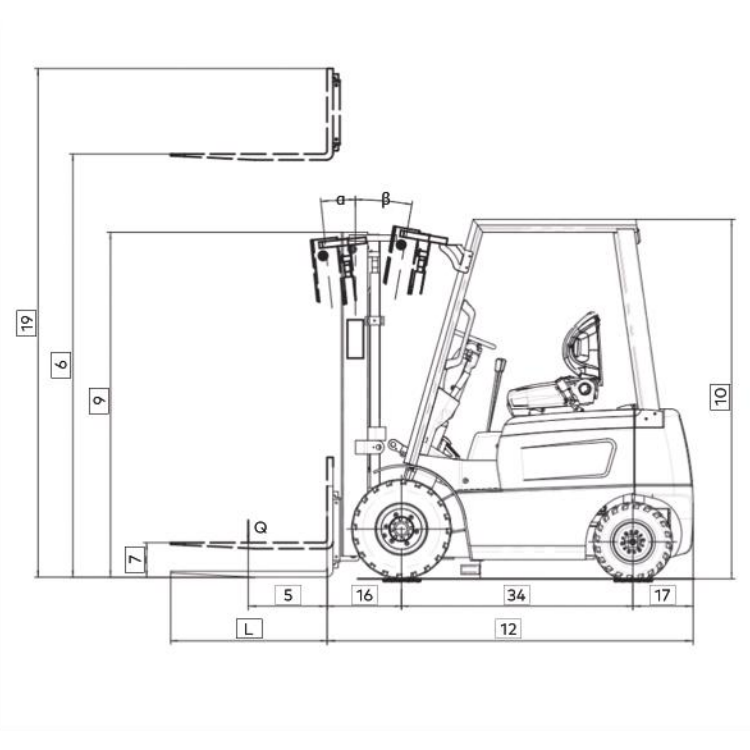

Dimension
2.1 Wheels, X=Driven Wheels (Front/Rear) 2x/2 2x/2 2x/2 2x/2 2x/2
2.2 Overall Length(Without Forks) mm 1955 2245 2285 2510 2550
2.3 Overall Width mm 1070 1150 1150 1225 1225
2.4 Mast Height, Lowered mm 1995 1995 1995 2080 2125
2.5 Max Lifting Height Of Fork(With Backrest) mm 4030 4030 4030 4260 4260
2.6 Overhead Guard Height mm 2100 2145 2145 2190 2190
2.7 Fork Size L×W×T mm 920x100x35 1070x122x40 1070x122x40 1070x125x40 1070x125×50
2.8 Mast Tilt Angle a/β deg 6/12 6/12 6/12 6/12 6/12
2.9 Ground Clearance, Below Mast mm 105  110  110  140  140
2.10 Ground Clearance, Below Chassis mm 95  115  115  120  120
2.11 Fork Overhang mm 375  445  445  485  485

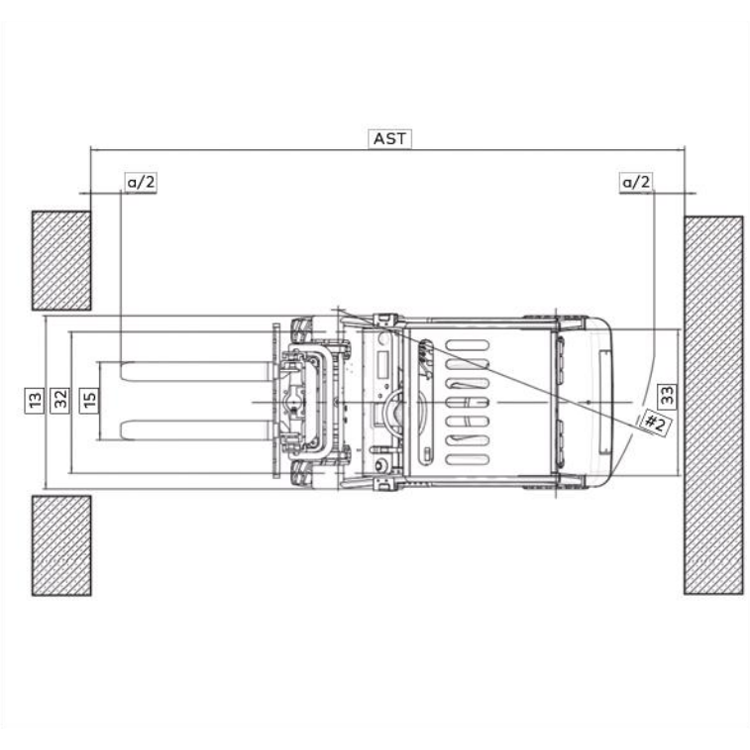

2.12 Min. Right Angle Stacking Aisle Width mm 1770  1885  1935  2080  2100
2.13 Lateral Fork Adjustment (Outside Of Fork)(Max./Min.) mm 200-920 245-1020 245-1020 250-1060 250-1060
2.14 Turning Radius kg 2690  3400  3820  4660  5050
Specification
3.1 Lifting Speed(Laden) mm/s 350  240  240  290  290
3.2 Lifting Speed(Unladen) mm/s 530  450  450  490  490
3.3 Travelling Speed(Laden) km/h 14  13.5  13.5  13.5  13.5
3.4 Travelling Speed(Unladen) km/h 16  15  14.5  15  15
3.5 Gradeability(Laden) % 15  12.5  12.5  12.5  12.5
3.6 Battery Voltage/Capacity(5 Hours) v/ah 48/400 48/450 48/560 72/480` 72/560
3.7 Battery Weight(With Box,Standard) kg 735  825  945  1220  1380
3.8 Li-lon Battery, Voltage/Capacity v/ah 80/220 80/220 80/220 80/420 80/420
3.9 Drive Motor Power kw/60min 8  11  11  16.5  16.5
3.10 Dc/Ac-Hydraulic Motor kw/60min 8.2/10 8.6/12 8.6/12 10/13.5 10/13.5
Tyre
4.1 Tyre Type(Front/Rear) pneumatic pneumatic pneumatic pneumatic pneumatic
4.2 Wheel Number(Front/Rear) 2/2 2/2 2/2 2/2 2/2
4.3 Wheel Size, Front 6.00-9-10-10PR 21x8-9-16PR 21x8-9-16PR 28x9-15-12PR 28x9-15-12PR
4.4 Wheel Size, Rear 16x6-8-10PR 18x7-8-14PR 18x7-8-14PR 18x7-8-14PR 18x7-8-14PR
4.5 Front Tread mm 910  955  955  1000  1000
4.6 Rear Tread mm 900  950  950  950  950
4.7 Wheelbase mm 1250  1400  1400  1600  1600
About Us
Hecha Intelligent Equipment Co., Ltd.
Hecha Intelligent Equipment Co., Ltd.
Hecha Intelligent Equipment Co., Ltd. is located in Jiaxing City, Zhejiang Province, just an hour's drive from Shanghai, and has a geographical location. The enterprise spans 48,000 square meters and boasts modern production facilities and equipment. The company considers professional focus to be its core competitiveness, follows the trend of international modern industrial and logistics equipment toward convenience, intelligence, energy savings, and environmental protection, and is determined to become a forklift manufacturer, providing customers with high-quality logistics equipment solutions, forklift parts supply, forklift maintenance, leasing, and other services.
Hecha Intelligent Equipment Co., Ltd. is China Custom 2-3.5Ton Electric Forklift Suppliers and OEM/ODM 2-3.5Ton Electric Forklift Suppliers. The company's current products primarily include internal combustion counterbalanced forklifts, battery counterbalanced forklifts, electric logistics handling equipment, and so on, can be outfitted with various functions to meet the stacking, loading, unloading, and handling needs of customers in various locations and environments.
The company's products have ISO-9001 certification, European CE certification, and inspection certificates from China's National Engineering Machinery Quality Inspection Centre. The company holds 9 trademarks and 79 patents, demonstrating its technological strength and innovative capabilities.
The company has a comprehensive sales network at home and abroad, with over 100 sales agency service providers in China and over 30 outside. Customers and industry praise the company for providing the direct, comprehensive, and efficient pre-sales, sales, and after-sales services.
Certificate Of Honor
  • Quality management system
  • Occupational health
  • Environmental management system
  • CE
  • CE
  • CE
  • ISO
  • Production License
  • Business School Case Studies
  • Manufacturing Center Certification
  • Technology Center Certification
  • Charity Company
News

Industry knowledge

What are the main application scenarios of 2-3.5 ton electric forklifts?

As a flexible and efficient logistics equipment, 2-3.5 ton electric forklifts play an important role in multiple application scenarios. Combined with the company introduction and product features of Hecha Intelligent Equipment Co., Ltd., the following are the main application scenarios of 2-3.5 ton electric forklifts:

Warehouse logistics center:
In large warehouse logistics centers, 2-3.5 ton electric forklifts are often used for stacking, handling and loading and unloading of goods. Its electric drive system makes the forklift quieter and more environmentally friendly when running inside the warehouse, while reducing emission pollution.

Manufacturing production line:
In the production line of the manufacturing industry, electric forklifts are used to transport raw materials, parts and finished products. Its precise maneuverability and carrying capacity can meet various needs on the production line and improve production efficiency.

Cold chain logistics:
In cold chain logistics, electric forklifts are widely used because of their environmental protection and energy-saving characteristics. They are used for cargo handling in cold storage and freezer warehouses to ensure the quality and safety of sensitive items such as food and medicine during transportation and storage.

Airports and ports:
At transportation hubs such as airports and ports, electric forklifts are used for loading and unloading of goods and short-distance transportation. Their electric drive system allows forklifts to operate flexibly in narrow passages and complex environments.

Construction sites:
On construction sites, electric forklifts are used for the handling and stacking of construction materials. Their sturdy structure and load-bearing capacity allow the forklifts to withstand the weight of construction materials, while their electric drive system also reduces noise and emission pollution.

As a professional electric forklift manufacturer and service provider, Hecha Intelligent Equipment Co., Ltd.'s 2-3.5 ton electric forklift products have been widely used and recognized in the above application scenarios due to their high quality, multi-function and environmental protection and energy saving. At the same time, the company also provides comprehensive pre-sales, sales and after-sales services to ensure customers' convenience and efficiency during use.

<
