Manual pallet stacker used for loading, stacking, and short transportation of goods.
Manual pallet stacker used for loading, stacking, and short transportation of goods.
MODEL | LD16DA | KLD16K | ||||
Performance | Maximum load capacity | kg | 1600 | 1600 | ||
load center | Q | mm | 600 | 600 | ||
Maximum lifting height | H3 | mm | 1600 | 1600 | ||
Travel speed (without load) | km/h | 5.2 | 5.2 | |||
Travel speed (with load) | km/h | 4.8 | 4.8 | |||
Lifting speed (without load) | mm/s | 121 | 121 | |||
Lifting speed (with load) | mm/s | 81 | 81 | |||
Lowering speed (without load) | mm/s | 105 | 105 | |||
Lowering speed (with load) | mm/s | 103 | 103 | |||
Gradeability (without load) | % | / | / | |||
Gradeability (with load) | % | / | / | |||
ServiceWeight (with battery) | kg | 656 | 656 | |||

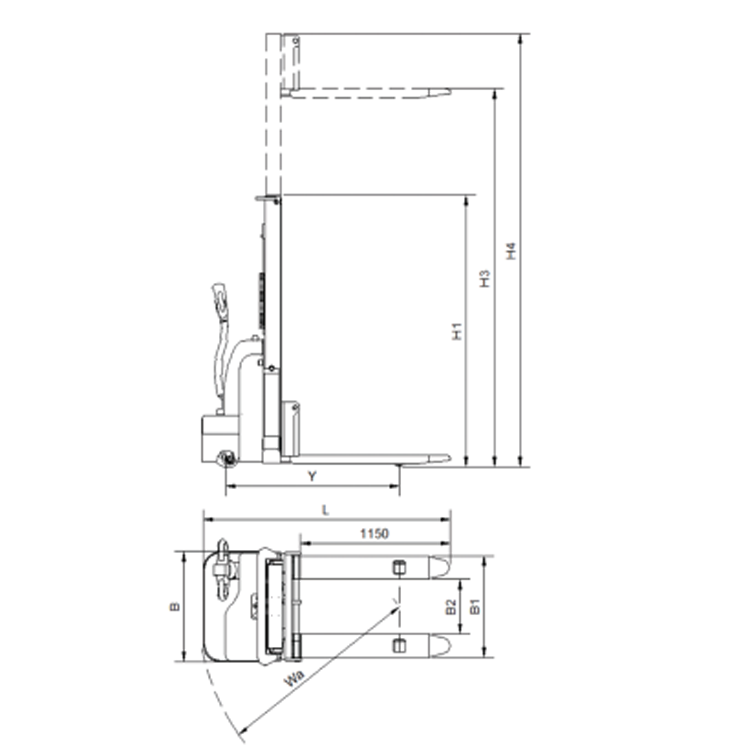

Overall length of frame | L | mm | 1896 | 1896 | ||
Overall length of frame(with platform) | mm | / | / | |||
Dimensions | Overall width of frame | B | mm | 800 | 800 | |
Overall heigh when mast lowerd to | H1 | mm | 2090 | 2090 | ||
Overall when mast lifted to | H4 | mm | 2090 | 2090 | ||
Wheelbase | mm | 1328 | 1328 | |||
Fork length | mm | 1150 | 1150 | |||
Fork outside width | B1 | mm | 680 | 680 | ||
Forkinside width | B2 | mm | 340 | 340 | ||
Fork thickness | mm | 65 | 65 | |||
Fork height when fork lowered to | mm | 90 | 90 | |||
Min ground clearance | mm | 15 | 15 | |||
Theoretical width of aisle for right-angle stacking(1200x1000) | Asts | mm | 2415 | 2415 | ||
Minimum turning radius | Wa | mm | 1540 | 1540 | ||
Minimum turning radius (with platform) | Wal | mm | ||||
Tire | Front wheel | mm | 85*70 | 85*70 | ||
Drive wheel | mm | 210*75 | 210*75 | |||
Caster wheel | mm | 130*55 | 130*55 | |||
Wheel Material | Polyurethane | |||||
Electrical components | Drive motor type | DC series motor | ||||
Rated output | kw | 0.75 | 0.75 | |||
Hoist motor type | DC series motor | |||||
Rated output | kw | 2.2 | 2.2 | |||
battery | Voltage | V | 24 | 24 | ||
Capacity | AH | 80 | 80 | |||
Weight | kg | 26 | 26 |
Mast Type | Max fork height | Mast lowered | Mast extended | |
KLD16DA | KLD16DA | KLD16DA | ||
Simplex or Duplex mast (2Stage) |
2000 | 1480 | 2460 | |
2500 | 1730 | 2960 | ||
3000 | 1980 | 3460 | ||
3500 | 2230 | 3960 |
1. Comprehensive consideration of product quality1. Materials and manufacturing ...
READ MORE1. Energy efficiency and cost savings of electric forkliftsElectric forklift use...
READ MORE1. Improvement of charging efficiency: speed up turnover and shorten waiting tim...
READ MORE1. Importance of cooling systemThe cooling system of electric forklifts is mainl...
READ MORECompared with lithium-ion battery forklifts, lead-acid battery forklifts show un...
READ MORE1. High-precision navigation and positioning: the cornerstone of precise operati...
READ MOREIn the modern logistics industry, the loading, stacking and short-distance transportation of goods are indispensable key links in daily operations. With the continuous advancement of technology, the application of intelligent equipment has become an important way to improve logistics efficiency and reduce costs. As a leader in this field, Hecha Intelligent Equipment Co., Ltd. provides electric stackers (economic type) and manual stackers that not only meet the market's demand for efficient, safe and reliable equipment, but also win wide customer praise with its perfect sales network and high-quality services.
1. Technical characteristics and application advantages of electric stackers (economic type)
The electric stacker (economic type) of Hecha Intelligent Equipment Co., Ltd. adopts advanced electric drive technology, which is easy to operate, energy-saving and environmentally friendly, and has low maintenance costs. This model has a compact design and flexible operation. It can shuttle freely in narrow warehouse aisles, greatly improving the efficiency and accuracy of cargo handling. In addition, the electric stacker is also equipped with an intelligent control system, which can achieve precise lifting and smooth operation, effectively reducing safety hazards during operation.
In terms of application areas, electric stackers (economic type) are widely used in various warehouses, factories, logistics centers and other places, especially in occasions where frequent cargo loading, stacking and short-distance transportation are required. Its efficient and stable performance not only improves the efficiency of logistics operations, but also reduces labor costs, creating significant economic benefits for enterprises.
2. Perfect sales network and high-quality services
Hecha Intelligent Equipment Co., Ltd. also performs well in market promotion. The company has established a perfect domestic and foreign sales network, with more than 100 domestic sales agent service providers and more than 30 foreign sales agent service providers. This huge sales network not only ensures that the products can quickly cover the global market, but also provides customers with convenient and efficient purchasing channels.
In terms of after-sales service, Hecha Intelligent Equipment Co., Ltd. is also direct, comprehensive and efficient. The company has a professional after-sales service team that can provide customers with a full range of services from pre-sales consultation, in-sales guidance to after-sales maintenance. Whether it is product selection, installation and commissioning or troubleshooting, the company can give customers satisfactory replies and solutions in the shortest time. This efficient and professional service has not only won the trust and praise of customers, but also enhanced the company's reputation and competitiveness in the industry.
3. Recognition from customers and the industry
With excellent product performance and high-quality services, Hecha Intelligent Equipment Co., Ltd.'s electric stacker (economic type) has won wide recognition and praise in the market. Many customers said that this model not only improved the efficiency and quality of their logistics operations, but also reduced operating costs and safety risks. At the same time, industry experts also highly praised Hecha Intelligent Equipment Co., Ltd.'s technological innovation and service concept, believing that it has made positive contributions to promoting the intelligentization and greening of logistics equipment.
Hecha Intelligent Equipment Co., Ltd.'s electric stacker (economic type) has won wide recognition from the market and customers for its excellent performance, perfect sales network and high-quality services. In the future, with the continuous development of the logistics industry and the continuous innovation of intelligent equipment technology, it is believed that Hecha Intelligent Equipment Co., Ltd. will continue to maintain its leading position and provide customers with more high-quality and efficient logistics equipment solutions.
