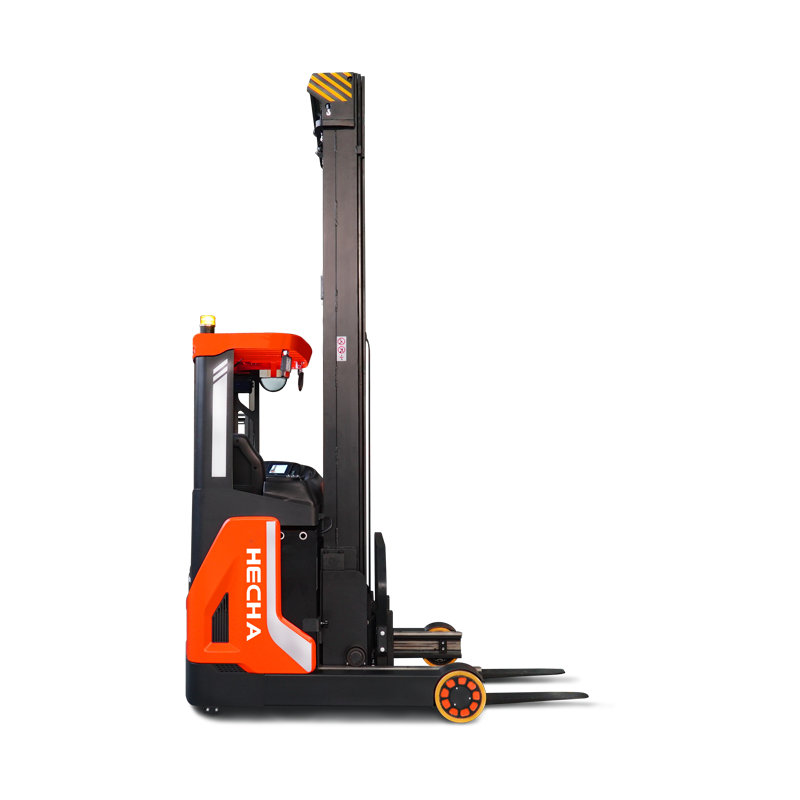

HECHA RT series high-quality Reach Truck, Providing up to 2000kgs capacity with up to 12500mm lifting height, Safe, Reliable with Energy Efficient.
HECHA RT series high-quality Reach Truck, Providing up to 2000kgs capacity with up to 12500mm lifting height, Safe, Reliable with Energy Efficient.
Identification | ||||||
1.2 | Manufacturer's type designation | RT16Pro | RT20Pro | RT16B | RT20B | |
1.3 | Drive: electric(battery or mains), diesel, petrol gas, manual) | electric | electric | electric | electric | |
1.4 | Type of operation(hand,pedestrian,standing,seated,order-picker) | seated | seated | seated | seated | |
1.5 | Load capacity/rated load | Q(kg) | 1600 | 2000 | 1600 | 2000 |
1.6 | Load center distance | c(mm) | 600 | 600 | 500 | 600 |
1.8 | Load distance, center of drive axle to fork | x(mm) | 365/176 | 395/200 | 365/176 | 395/200 |
1.9 | wheelbase | y(mm) | 1400 | 1500 | 1400 | 1500 |
Weights | ||||||
2.1 | Service weight incl. battery | kg | 3960 | 4220 | 3990 | 4250 |
2.3 | Axle load, mast retracted without load, drive/support arm wheel | kg | 2420/1540 | 2560/1660 | 2450/1540 | 2580/1670 |
2.4 | Axle load, mast extended with load, drive/support arm wheel | kg | 830/4760 | 746/5474 | 890/4700 | 766/5484 |
2.5 | 2.5 Axle load, mast retracted with load, drive/support arm wheel | kg | 2100/3460 | 2270/3950 | 2180/3410 | 2290/3960 |
Wheels、Chassis | ||||||
3.1 | Type: solid rubber, superelastic, pneumatic, polyurethane | pu | pu | pu | pu | |
3.2 | Tyres size,front | Øxw(mm) | Ø343×140 | Ø343×140 | Ø343×140 | Ø343×140 |
3.3 | Tyres size,rear | Øxw(mm) | Ø285×110 | Ø330×110 | Ø285×110 | Ø330×110 |
3.5 | Wheels, number front/rear(x=driven wheels) | 1×/2 | 1×/2 | 1×/2 | 1×/2 | |
3.7 | Trackwidth, rear | b11(mm) | 1160 | 1160 | 1160 | 1160 |

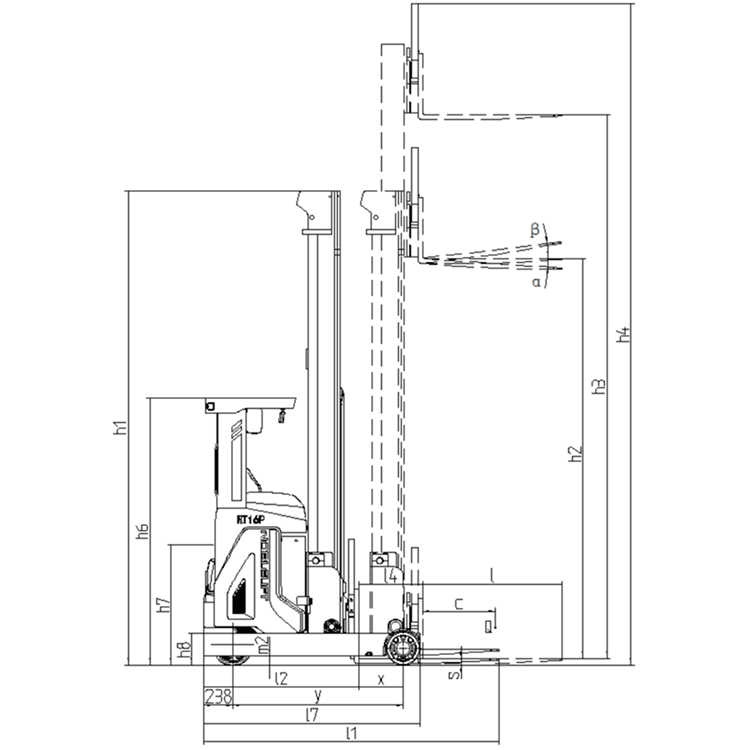

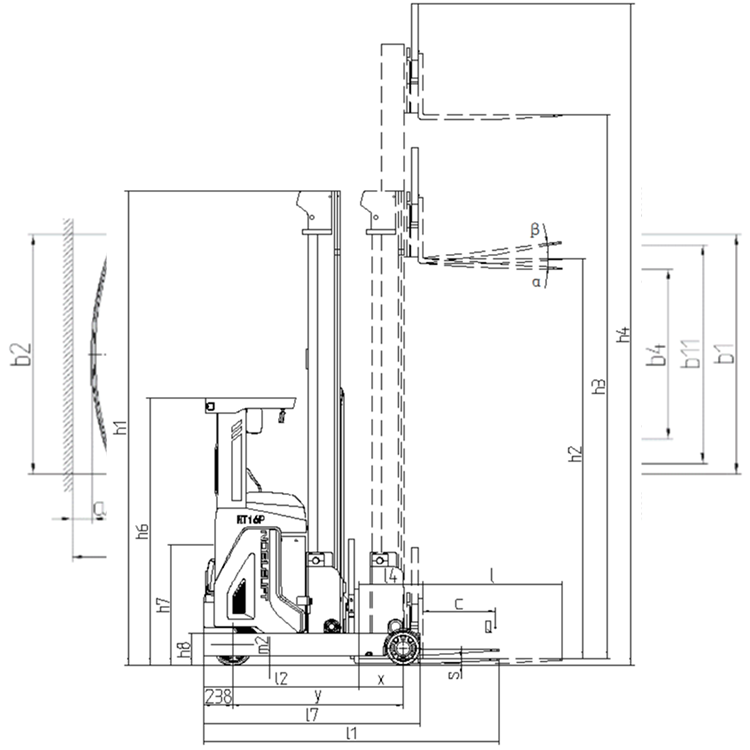

Basic Dimensions | ||||||
4.1 | Mast/fork carriage tilt forward/backward | α/β() | 4°/-2° | 4°/-2° | 4°/-2° | 4°/-2° |
4.2 | lowered mast height | h1(mm) | 3900 | 3900 | 3900 | 3900 |
4.3 | Free lift | h2(mm) | 3290 | 3290 | 3290 | 3290 |
4.4 | Lift height | h3(mm) | 9500 | 9500 | 9500 | 9500 |
4.5 | Extended mast height | h4(mm) | 10410 | 10410 | 10410 | 10410 |
4.7 | Overhead load guardheight | h6(mm) | 2200 | 2200 | 2200 | 2200 |
4.8 | Seat height/standing height | h7(mm) | 960 | 960 | 960 | 960 |
4.10 | Height of support arms | h8(mm) | 270 | 270 | 270 | 270 |
4.15 | Height of lowered forks | h13(mm) | 40 | 40 | 40 | 40 |
4.19 | Overall length | 11(mm) | 2412 | 2488 | 2412 | 2488 |
4.20 | Length to face of forks | 12(mm) | 1273 | 1338 | 1338 | |
4.21 | Overall width | bl(mm) | 1270 | 1270 | 1270 | 1270 |
4.22 | Fork dimensions | s/e/l(mm) | 35/100/1150 | 40/120/1150 | 35/100/1150 | 40/120/1150 |
4.23 | Fork carriage ISO 2328, class/type A, B | 2A | 2A | 2A | 2A | |
4.25 | Width across forks | b5(mm) | 200-740/200-818 | 240-740/240-818 | 200-740/200-818 | 240-740/240-818 |
4.26 | Distance between support arms | b4(mm) | 900 | 900 | 900 | 900 |
4.28 | Reach distance | 14(mm) | 525 | 595 | 525 | 595 |
4.31 | Ground clearance, laden, under mast | ml(mm) | 90 | 90 | 90 | 90 |
4.32 | Ground clearance, center of wheelbase | m2(mm) | 75 | 75 | 75 | 75 |
4.33 | Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2720 | 2840 | 2720 | 2840 |
4.34 | Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2780 | 2900 | 2900 | |
4.35 | Turning radius | Wa(mm) | 1650 | 1750 | 1650 | 1750 |
4.37 | Length across support arms | 17(mm) | 1780 | 1900 | 1780 | 1900 |
Performance Data | ||||||
5.1 | Travel speed,laden/unladen | km/h | 10.5/10.5 | 10.5/10.5 | 10.5/10.5 | 10.5/10.5 |
5.2 | Lift speed,laden/unladen | m/s | 0.35/0.5 | 0.35/0.5 | 0.35/0.5 | 0.35/0.5 |
5.3 | lowering speed,laden/unladen | m/s | 0.45/0.45 | 0.45/0.45 | 0.45/0.45 | 0.45/0.45 |
5.4 | Reach speed, with/without load | m/s | 0.1/0.1 | 0.1/0.1 | 0.1/0.1 | 0.1/0.1 |
5.8 | Max. grade ability, with/without load | % | 10/15 | 10/15 | 10/15 | 10/15 |
5.10 | Service brake | Hydraulic/electric | Hydraulic/electric | Hydraulic/electric | Hydraulic/electric | |
E-Motor | ||||||
6.1 | Drive motor rating S260 min | kW | 6.4/7 | 6.4/7 | 6.4/7 | 6.4/7 |
6.2 | Lift motor rating at S315% | kW | 12.5 | 12.5 | 12.5 | 12.5 |
6.4 | Battery voltage, nominal capacity K5 | V/Ah | 48/420,560 | 48/560 | 48/420,560 | 48/560 |
6.4 | Battery voltage, nominal capacity K5 | kg | 750 | 950 | 750 | 950 |
Other Details | ||||||
8.1 | Type of drive control | AC | AC | AC | AC | |
8.4 | Sound level at driver's ear according to EN 12053 | dB(A) | 68 | 68 | 68 | 68 |
Model | Lift height h3(mm) |
Free lift h2(mm) |
Mast height h1(mm) |
Tiltof fork α/β(°) |
16M450 | 4500 | 1563 | 2235 | 4°/-2° |
16M500 | 5000 | 1730 | 2400 | 4°/-2° |
16M550 | 5500 | 1897 | 2568 | 4°/-2° |
16M600 | 6000 | 2063 | 2735 | 4°/-2° |
16M650 | 6500 | 2230 | 2900 | 4°/-2° |
16M700 | 7000 | 2397 | 3068 | 4°/-2° |
16M750 | 7500 | 2563 | 3234 | 4°/-2° |
16M800 | 8000 | 2730 | 3400 | 4°/-2° |
16M850 | 8500 | 2897 | 3567 | 4°/-2° |
16M900 | 9000 | 3063 | 3734 | 4°/-2° |
16M950 | 9500 | 3230 | 3900 | 4°/-2° |
20M450 | 4500 | 1563 | 2235 | 4°/-2° |
20M500 | 5000 | 1730 | 2400 | 4°/-2° |
20M550 | 5500 | 1897 | 2568 | 4°/-2° |
20M600 | 6000 | 2063 | 2735 | 4°/-2° |
20M650 | 6500 | 2230 | 2900 | 4°/-2° |
20M700 | 7000 | 2397 | 3068 | 4°/-2° |
20M750 | 7500 | 2563 | 3234 | 4°/-2° |
20M800 | 8000 | 2730 | 3400 | 4°/-2° |
20M850 | 8500 | 2897 | 3567 | 4°/-2° |
20M900 | 9000 | 3063 | 3734 | 4°/-2° |
20M950 | 9500 | 3230 | 3900 | 4°/-2° |
1. Comprehensive consideration of product quality1. Materials and manufacturing ...
READ MORE1. Energy efficiency and cost savings of electric forkliftsElectric forklift use...
READ MORE1. Improvement of charging efficiency: speed up turnover and shorten waiting tim...
READ MORE1. Importance of cooling systemThe cooling system of electric forklifts is mainl...
READ MORECompared with lithium-ion battery forklifts, lead-acid battery forklifts show un...
READ MORE1. High-precision navigation and positioning: the cornerstone of precise operati...
READ MOREIn today's rapidly developing logistics and manufacturing fields, efficient, intelligent and environmentally friendly logistics equipment has become a key factor in enhancing corporate competitiveness. Hecha Intelligent Equipment Co., Ltd., as a leader in the field of forklift manufacturing, is leading logistics equipment to a new era of convenience, intelligence, energy saving and environmental protection with its RT16/20 1600-2000kg rech truck pro with an unprecedented attitude. This article will explore in depth the characteristics and technical advantages of this forklift and how Hecha builds its core competitiveness through professional services.
1. RT16/20 1600-2000kg rech truck pro: Technical highlights and performance advantages
The RT16/20 1600-2000kg rech truck pro launched by Hecha Intelligent Equipment Co., Ltd. belongs to the HECHA RT series of high-quality reach forklifts, designed to meet the needs of medium and heavy material handling. Its maximum load capacity is up to 2,000 kg, and its lifting height is an astonishing 12,500 mm. This data not only demonstrates its outstanding ability in the field of heavy-load lifting, but also greatly broadens the application scenarios of forklifts, whether it is the storage and retrieval operation of high-rise shelves in warehouses or the flexible operation in narrow spaces.
The forklift adopts advanced energy-saving technology, which effectively reduces energy consumption while ensuring powerful performance, meeting the current global urgent demand for green logistics. In terms of safety performance, Hecha ensures the safety of operators by integrating multiple safety protection mechanisms, such as emergency braking system and anti-rollover device, so that every handling is worry-free.
2. Hecha Intelligent Equipment Co., Ltd.: Professional Focus, Innovation Driven
Hecha Intelligent Equipment Co., Ltd. is well aware that in the ever-changing industrial and logistics industry, only continuous innovation can be invincible. The company insists on professional focus as its core competitiveness, keeps up with the development trend of international modern industrial and logistics equipment, continuously introduces new technologies and new materials, optimizes product structure, and improves product performance. Its RT series forklifts are the crystallization of this concept. They not only represent the top level in the industry, but also reflect Hecha's deep insight into the intelligent, automated and green future of logistics equipment.
3. One-stop service: from solutions to after-sales maintenance
In addition to excellent products, Hecha Intelligent Equipment Co., Ltd. is also committed to providing customers with a full range of service experience. The company not only provides customized logistics equipment solutions to meet the personalized needs of different customers, but also has established a complete forklift parts supply system to ensure that customers can quickly obtain the required parts and reduce downtime. In addition, the professional forklift maintenance team and flexible rental services provide customers with worry-free use guarantees and help customers maximize operational efficiency.
Hecha Intelligent Equipment Co., Ltd. RT16/20 1600-2000kg rech truck pro, with its excellent performance, advanced technology and comprehensive services, is gradually becoming the first choice for many companies to upgrade their logistics. With the continuous development of the global logistics industry and the acceleration of intelligent transformation, Hecha will continue to uphold the spirit of professionalism and focus, continue to explore and innovate, and provide global customers with more efficient, intelligent and environmentally friendly logistics equipment solutions, and jointly open a new chapter in logistics equipment.
